EPI-QM57

36 EPI-QM57 User’s Manual

2.4.23

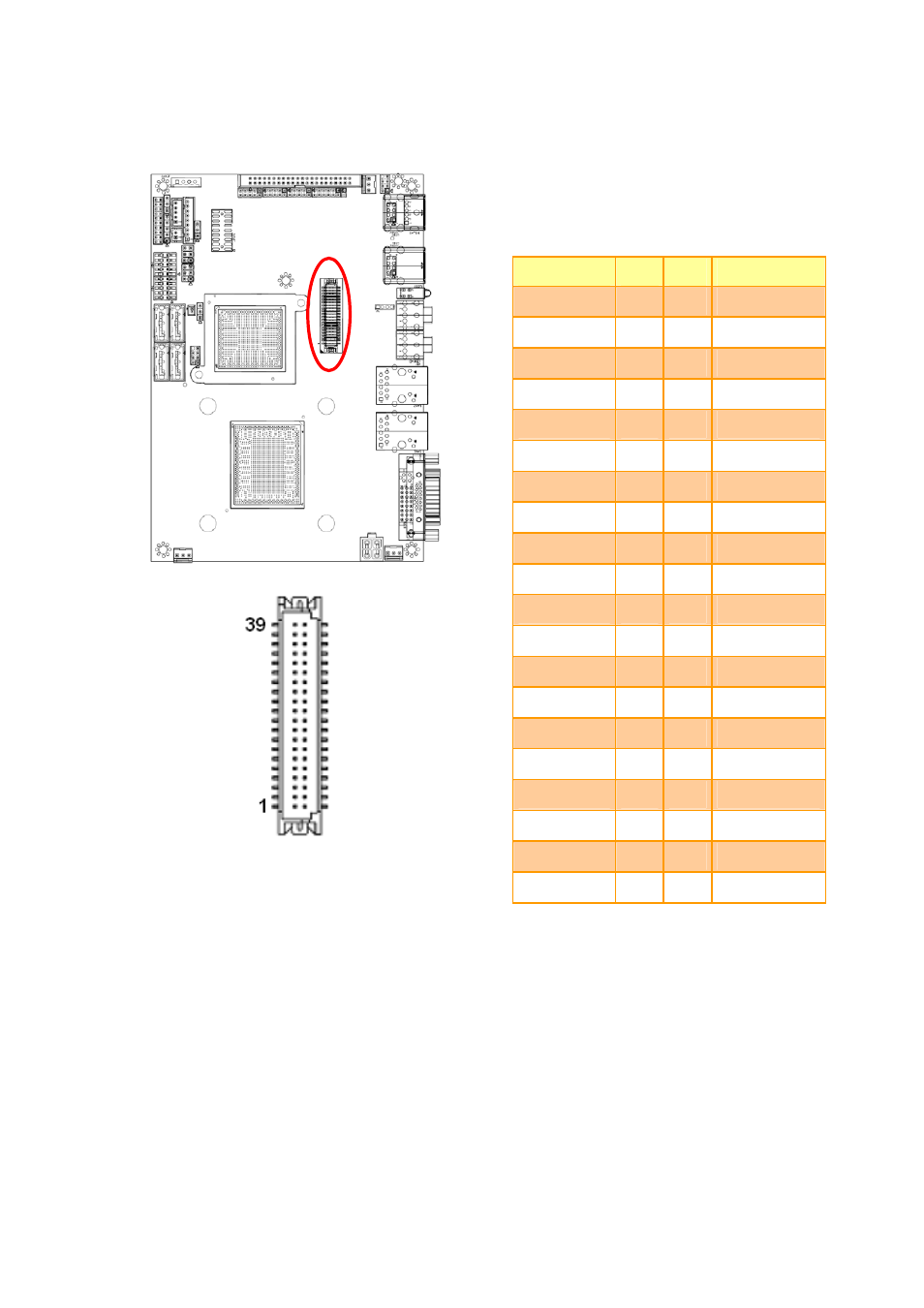

LVDS connector (JLVDS1)

Signal

PIN

PIN

Signal

+12V

39

40

+12V

GND 37

38 GND

CLK2M

35

36

CLK1M

CLK2P 33

34 CLK1P

GND

31

32

GND

YA7M 29

30 YA6M

YA7P

27

28

YA6P

GND 25

26 GND

YA5M

23

24

YA4M

YA5P 21

22 YA4P

GND

19

20

GND

YA3M 17

18 YA2M

YA3P

15

16

YA2P

GND 13

14 GND

YA1M

11

12

YA0M

YA1P 9

10 YA0P

GND

7

8

GND

SPCLK 5 6 SPDATA

+3.3V

3

4

+5V

+3.3V 1

2 +5V
