Avalue ECM-LX800 - Manual (Page 19)

Quick Installation Guide
ECM-LX800 Series Quick Installation Guide 19

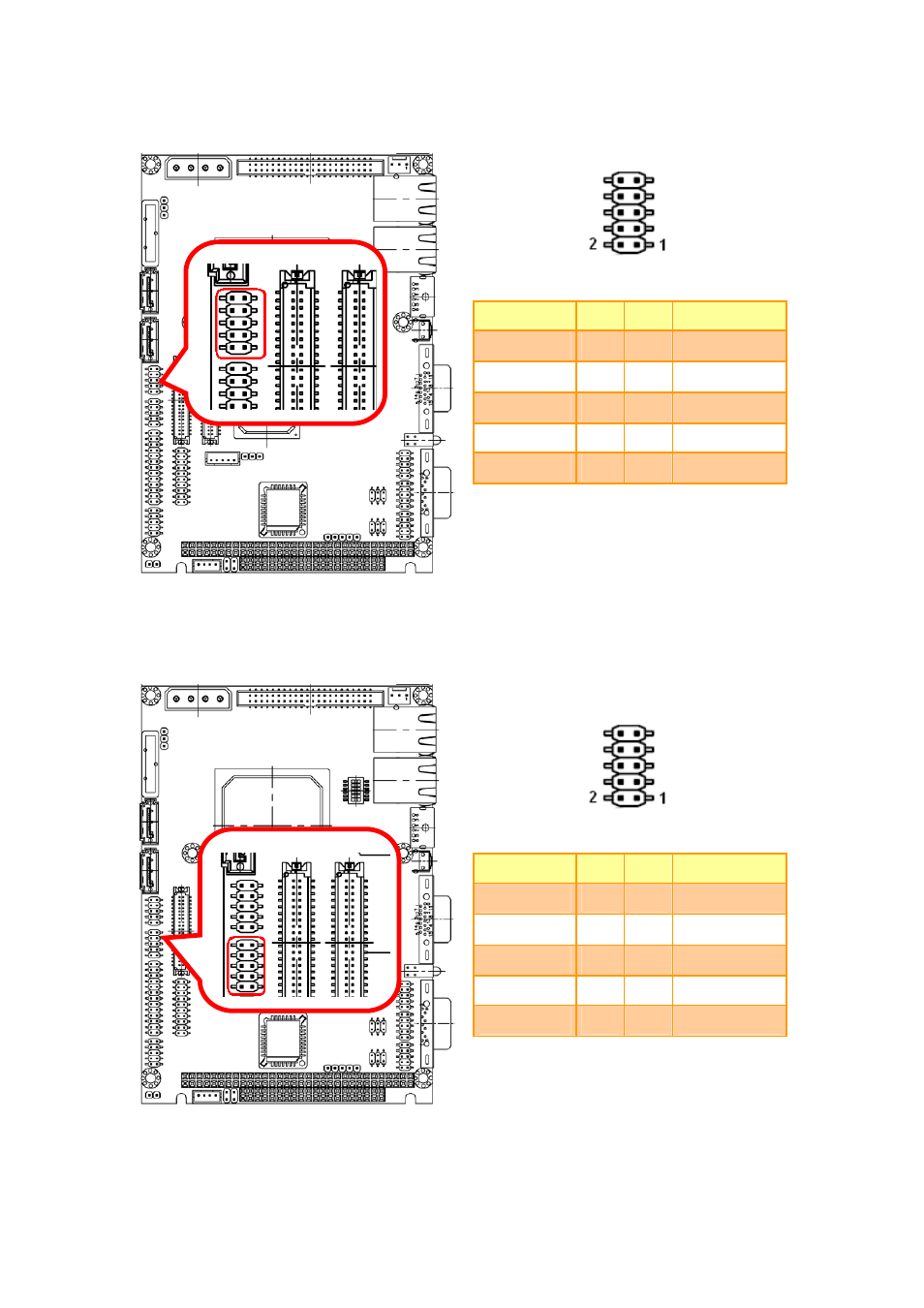

2.3.16 USB Connector 0 & 1 (JUSB1)
Signal PIN PIN Signal
+5V 1 2 GND
D0- 3 4 GND
D0+ 5 6 D1+
GND 7 8 D1-
GND 9 10 +5V
2.3.17 USB Connector 2 & 3 (JUSB2)
Signal PIN PIN Signal
+5V 1 2 GND
D2- 3 4 GND
D2+ 5 6 D3+
GND 7 8 D3-
GND 9 10 +5V
