ECM-PNV Quick Installation Guide

14 ECM-PNV Quick Installation Guide

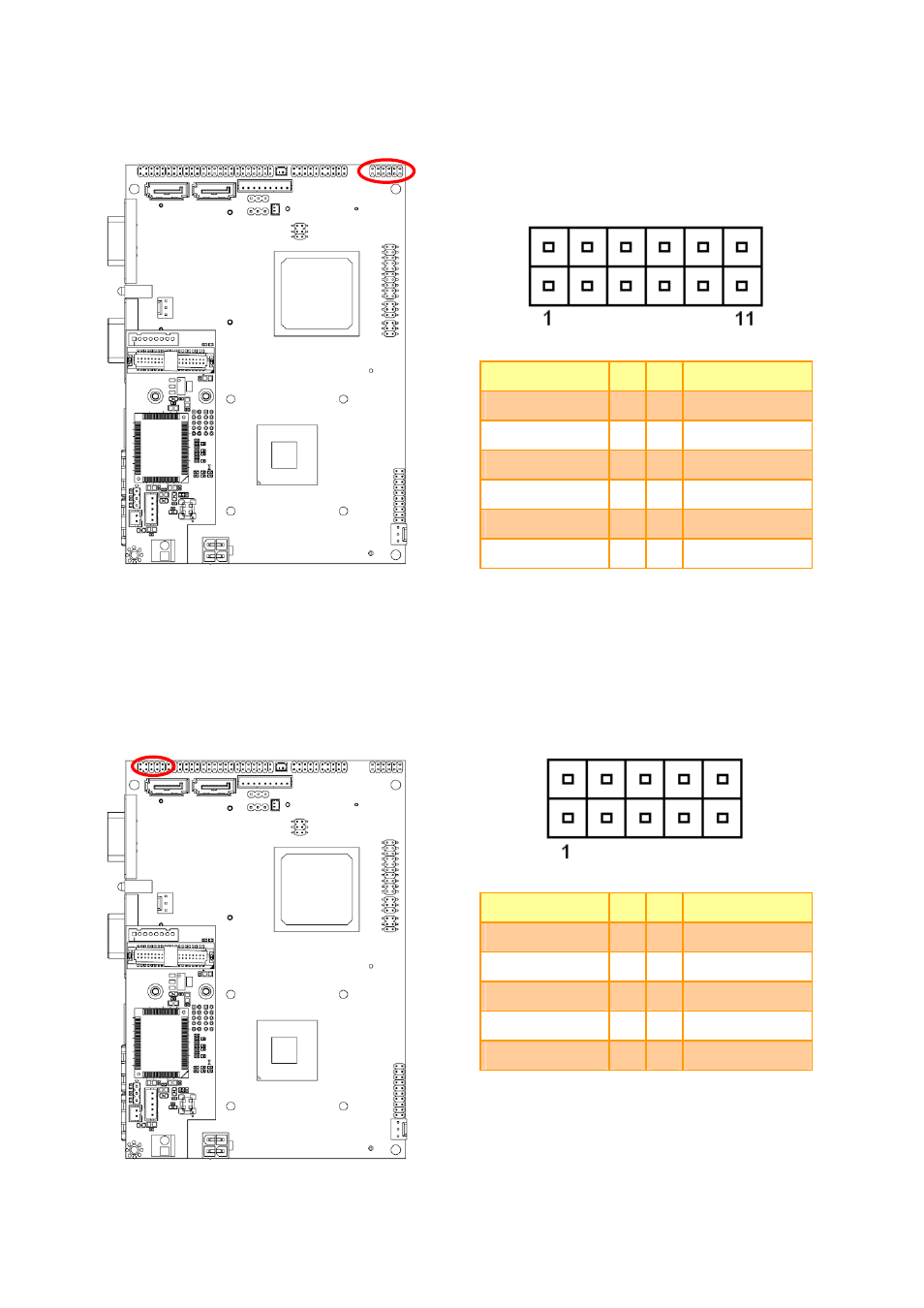

2.3.10 Audio connector (JAUDIO)

Signal

PIN PIN

Signal

LINEOUT_R

1

2

LINEOUT_L

GND 3

4 GND

LINEIN_R

5

6

LINEIN_L

MIC-R 7

8 MIC-L

FRONT-JD

9

10

LINE1-JD

MIC1-JD 11

12 GND

2.3.11 Serial port 2 connector (JCOM2)

Signal

PIN PIN

Signal

DCD

1

2

RxD

TxD 3

4 DTR

GND

5

6

DSR

RTS 7

8 CTS

RI

9

10

NC
