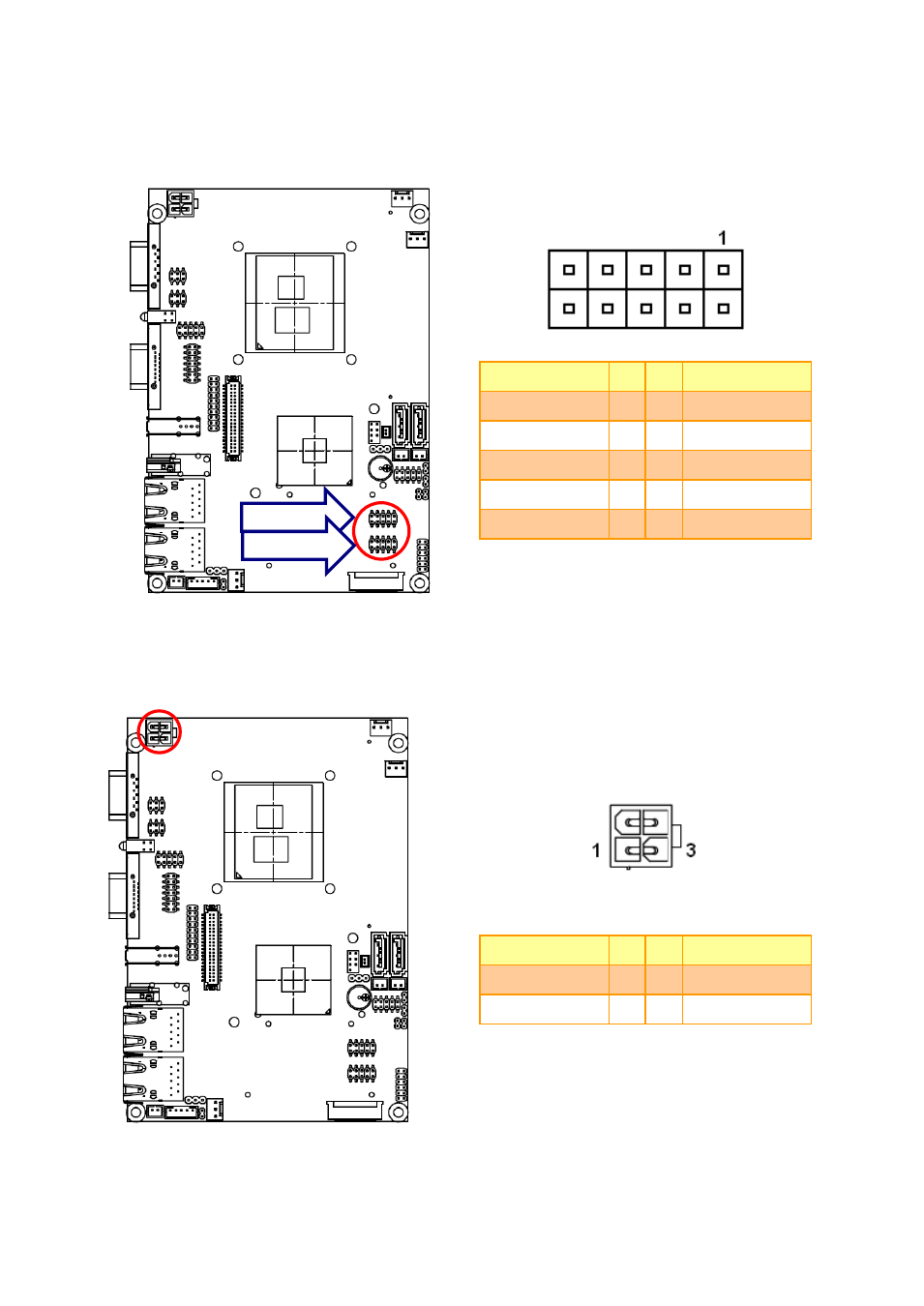

2.3.20 USB connector 8 & 9/ 10 & 11 (JUSB45/ JUSB67)

Signal

PIN PIN

Signal

+5V

1

2

GND

N8/ N10

3

4

GND

P8/ P10

5

6

P9/ P11

GND

7

8

N9 N11

GND

9

10

+5V

2.3.21 Power connector (PWRCON1)

Signal

PIN PIN

Signal

GND

2

4

VIN

GND

1

3

VIN

JUSB45

JUSB67
