ECM-QM57 Quick Installation Guide

ECM-QM57 Quick Installation Guide 15

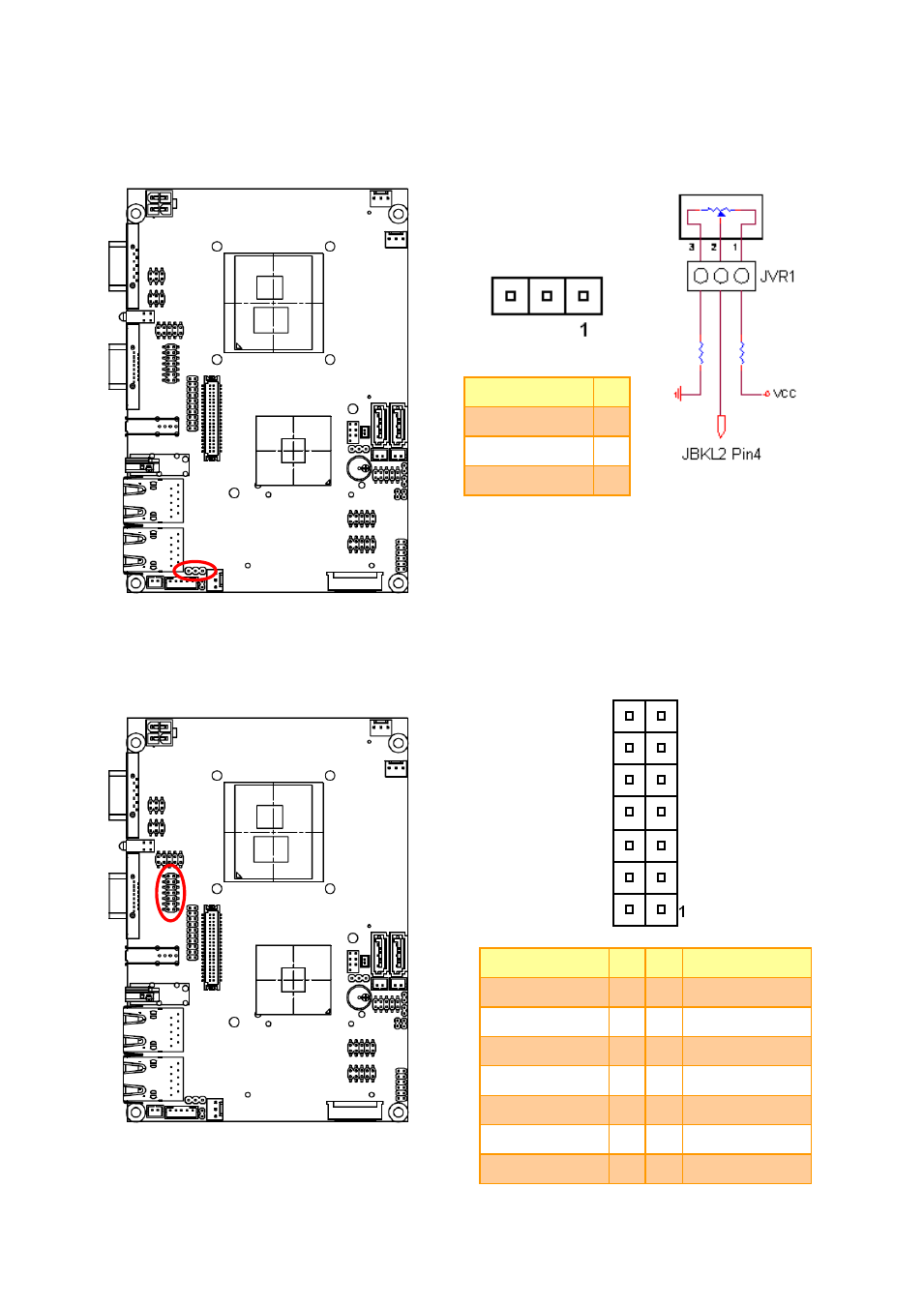

2.3.11 LCD backlight brightness adjustment (JVR1)

Signal

PIN

+5V

1

BRIGHT

2

GND

3

Variation Resistor

(Recommended: 4.7

KΩ,

>1/16W)

2.3.12 Low pin count connector (JLPC1)

Signal

PIN PIN

Signal

GND

14

13

+5V

GND

12

11

+5V

GND

10

9

INT_SERIRQ

CLK_LPC

8

7

LPC_AD3

LPC_FRAME#

6

5

LPC_AD2

PLT_RST#

4

3

LPC_AD1

+3.3V

2

1

LPC_AD0
