ECM-CDV Quick Installation Guide

14 ECM-CDV Quick Installation Guide

2.3.10

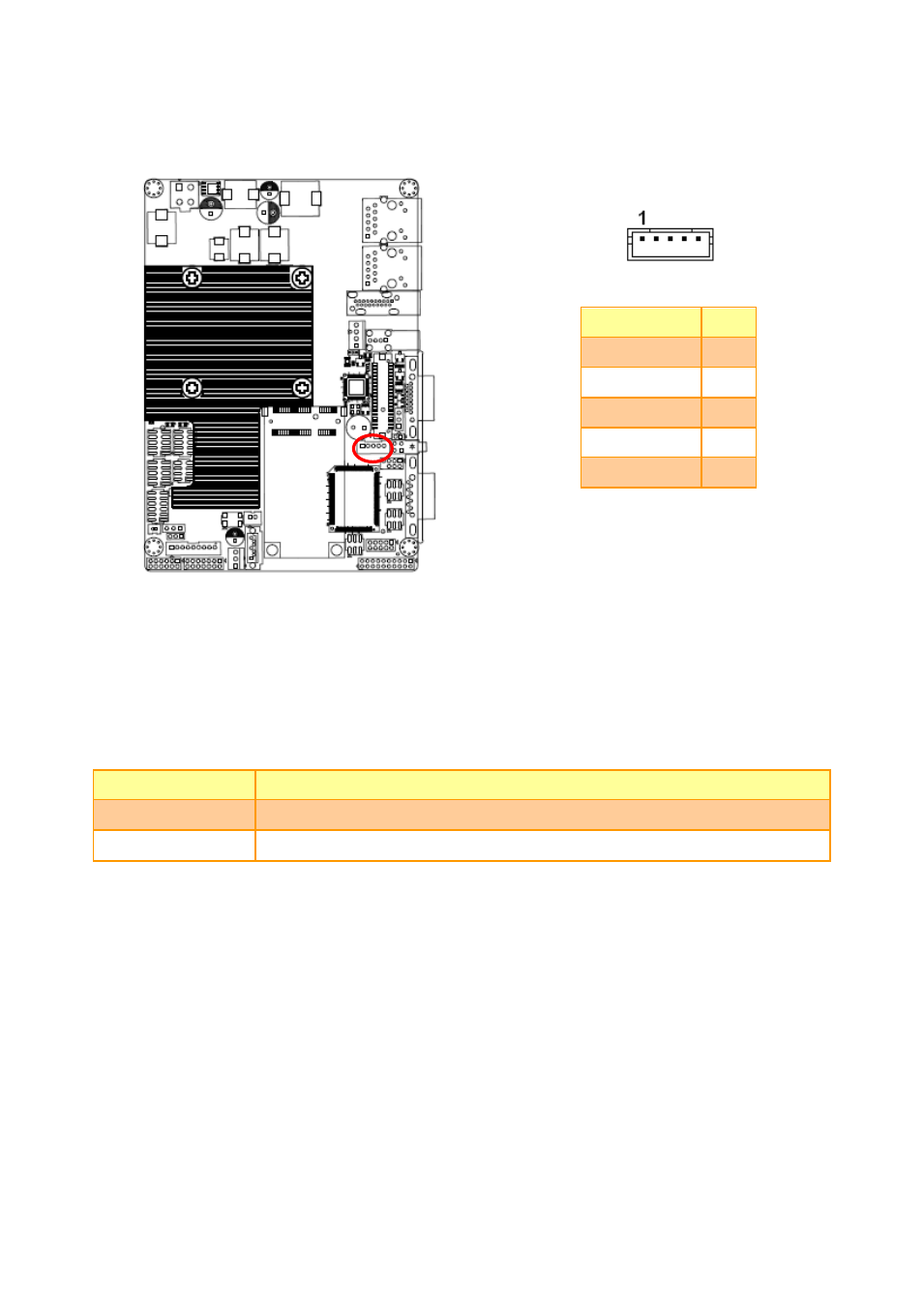

LCD inverter connector (BKL1)

Signal

PIN

+12V

1

GND

2

LVDS_BLKTEN

3

BRIGHT

4

+5V

5

Note:

For inverters with adjustable Backlight function, it is possible to control the LCD brightness
through the VR signal controlled by VR1.

2.3.10.1 Signal Description

– LCD Inverter Connector (BKL1)

Signal

Signal Description

BRIGHT

Vadj = 0.75V ~ 4.25V (Recommended: 4

.7KΩ, >1/16W)

LVDS_BLKTEN

LCD backlight ON/OFF control signal
