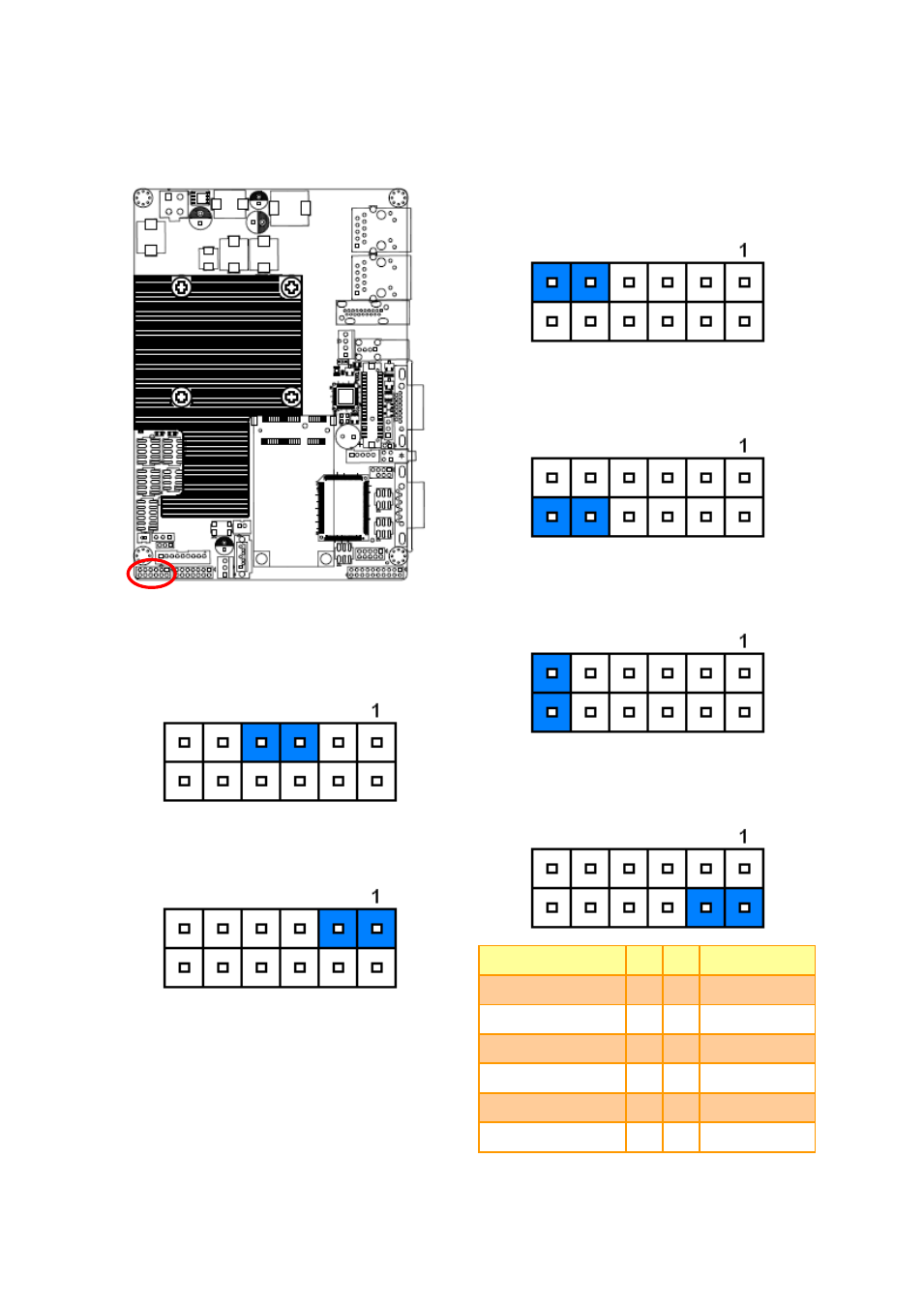

Miscellaneous settings connector (FPT1)

* Default

System Reset

HDD LED Mode

Power Button

ATX Mode*

AT Mode

Power LED Mode

Signal

PIN PIN

Signal

HDD_LED-

1

2

PWR_LED+

HDD_LED+

3

4

GND

GND

5

6

PWRSB_LED+

SYSRST

7

8

PWRSB_LED-

DS5_PANSW IN#

9

10

GND

ATX_EN#

11

12

ATX_EN#
