ECM-QM77

30 ECM-QM77 User

’s Manual

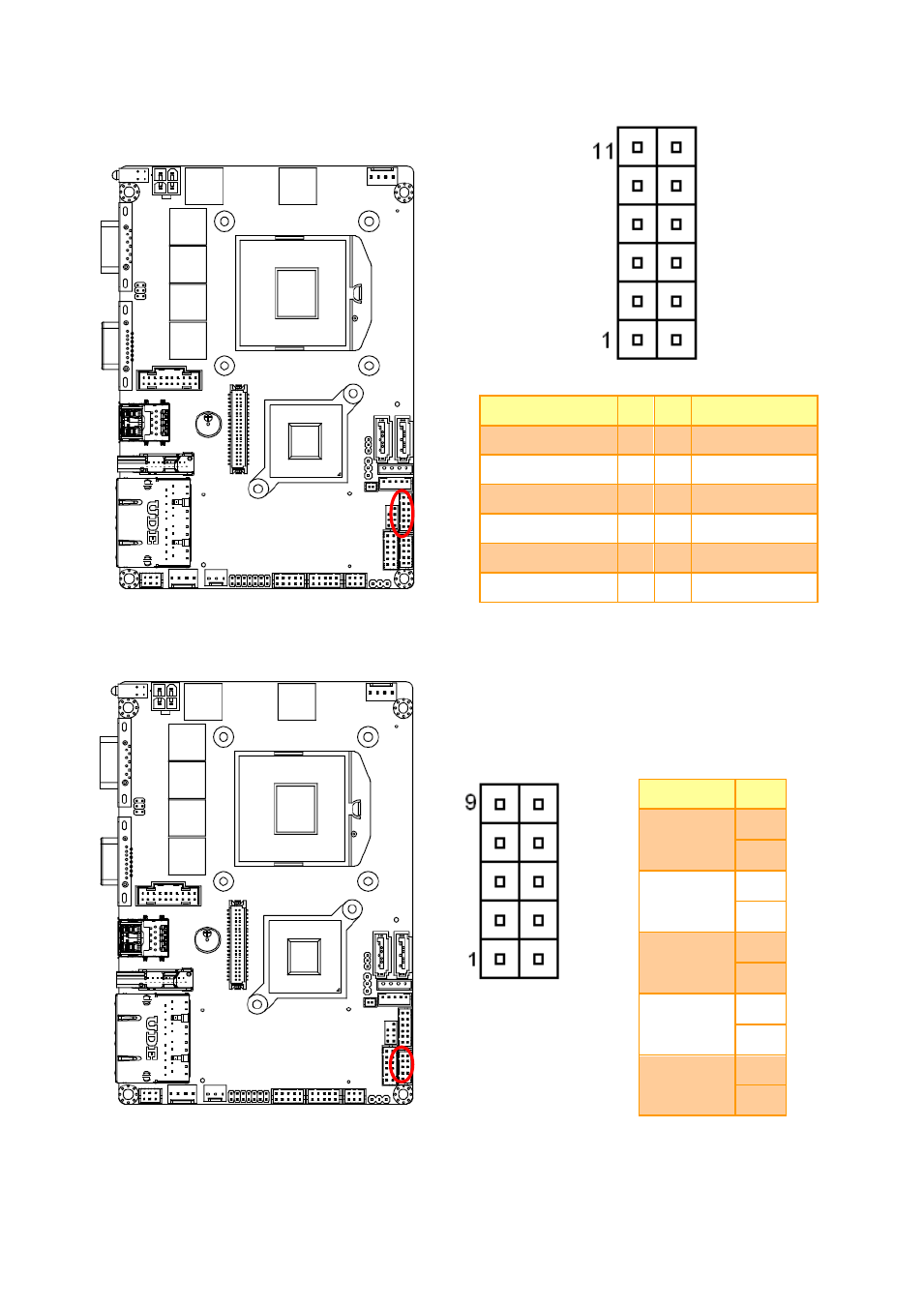

2.4.14 General purpose I/O connector (JDIO1)

Signal

PIN PIN

Signal

GND

11

12

GND

SMB_DATA_9555

9

10 SMB_CLK_9555

DIO_GP13

7

8

DIO_GP23

DIO_GP12

5

6

DIO_GP22

DIO_GP11

3

4

DIO_GP21

DIO_GP10

1

2

DIO_GP20

2.4.15 Miscellaneous setting connector (JFP1)

Signal

PIN

PWBT

1

2

RST#

3

4

PWR-LED

5

6

HDD-LED

7

8

COPEN#

9

10
