ECM-BYT User’s Manual
ECM-BYT User ’s Manual 27

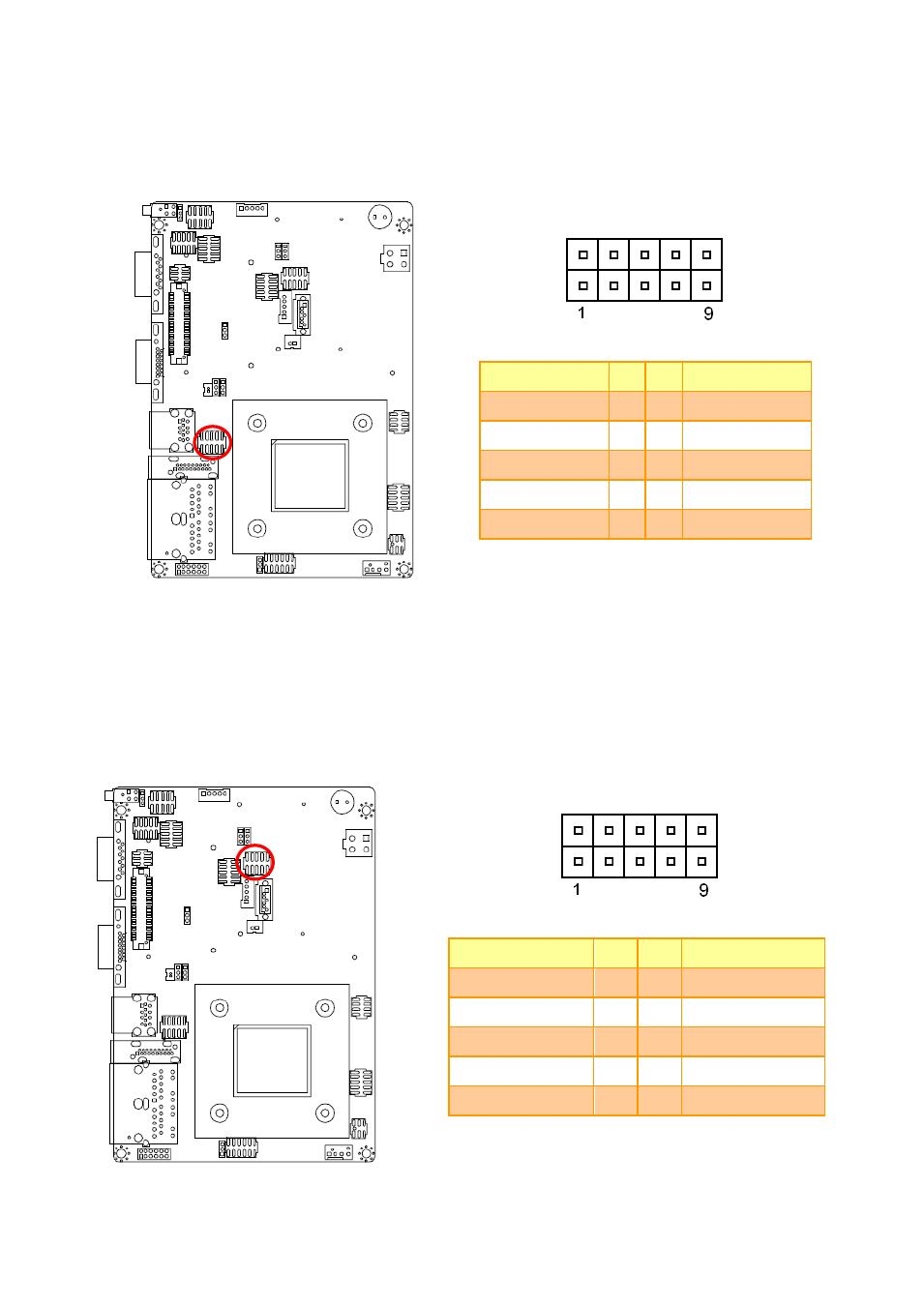

2.4.11 On-board header for USB2.0 (JUSB3_4)
Signal PIN PIN Signal
USBVCC23 1 2 GND
USB_DN_R_3 3 4 GND
USB_DP_R_3 5 6 USB_DP_R_2
GND 7 8 USB_DN_R_2
GND 9 10 USBVCC23
2.4.12 On-board header for USB2.0 (H_JUSB12)
Signal PIN PIN Signal
USBVCC_HSIC34 1 2 GND
HSIC_DN_2 3 4 GND
HSIC_DP_2 5 6 HSIC_DP_1
GND 7 8 HSIC_DN_1
GND 9 10 USBVCC_HSIC34
