2.5.2 Mechanical Data.
a) Size (see Figure G) D = approx. 19 in (48 cm)
H = approx. 27 in (69 cm) for TA-8 & TA-8-C1
H = approx. 31 in (79 cm) for TA-8-C2
b) Weight approx. 28 lbs (12.7 Kg) for TA-8 & TA-8-C1
approx. 32 lbs (14.5 Kg) for TA-8-C2
c) Shipping weight
<
<

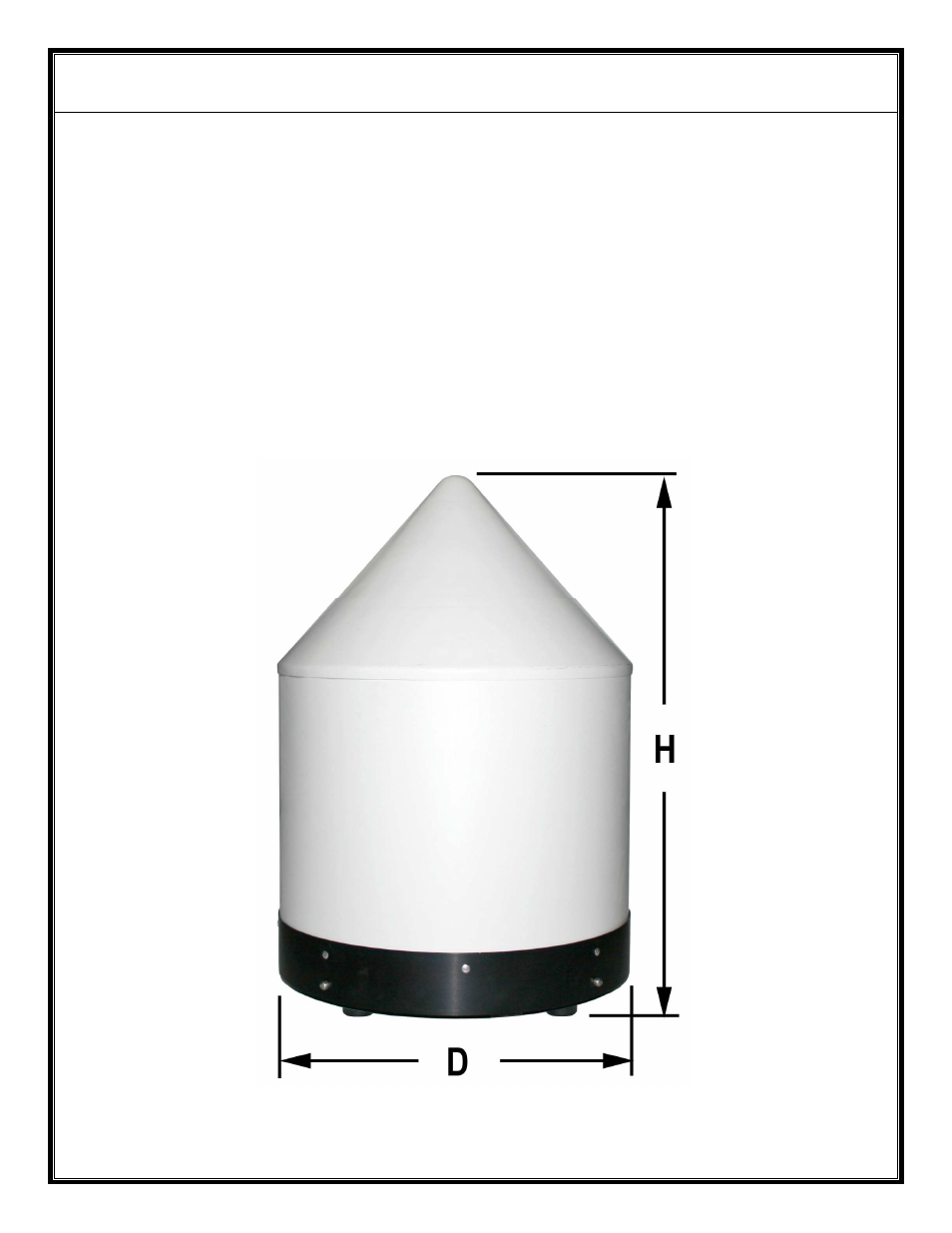

Figure G – TA-8 Series Mechanical Outline
