DX602-C1 User’s Guide & Operating Manual

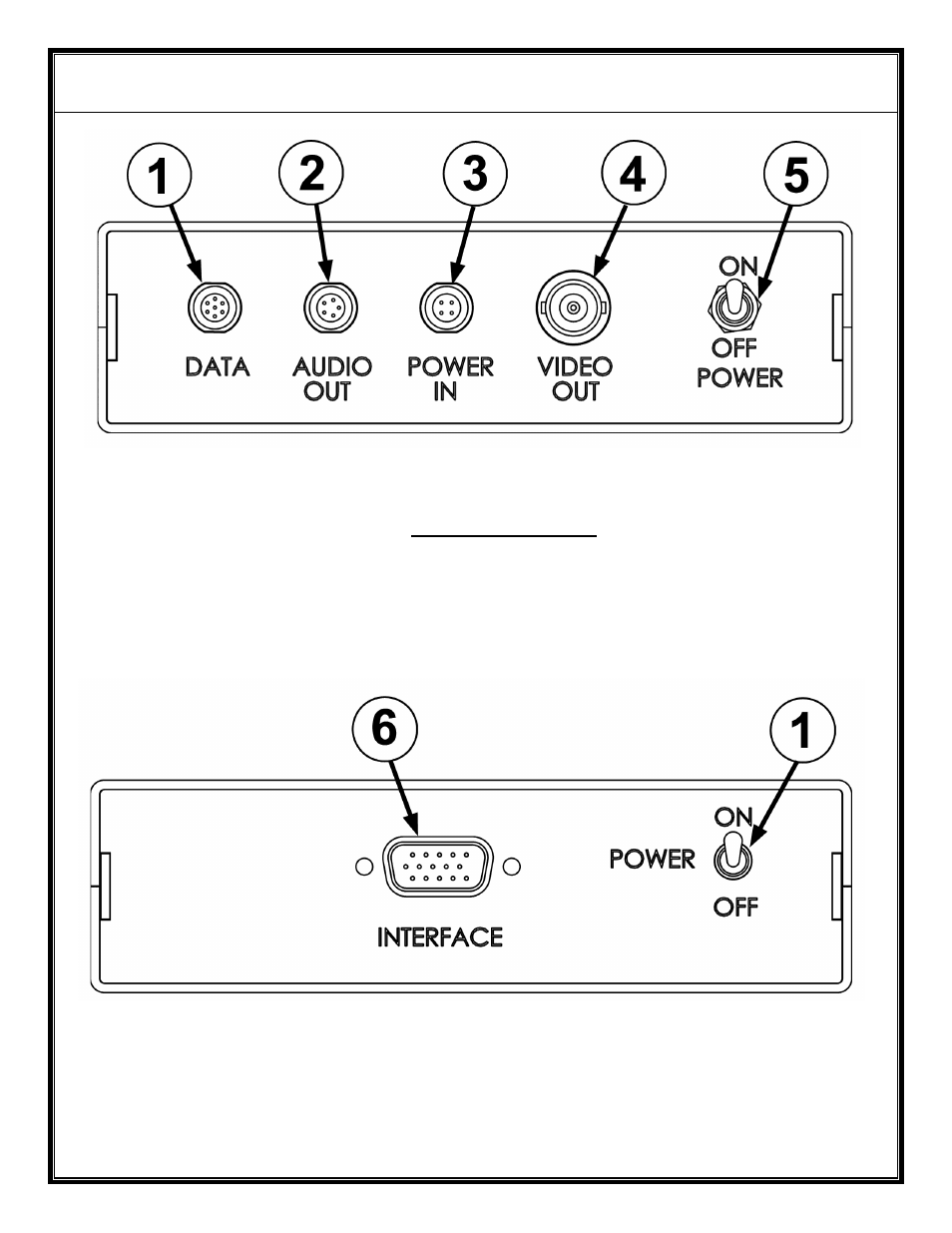

Figure B – Rear Panel – Broadcasting
DX402/DX502/DX602 Controls and Connectors
NOT APPLICABLE
1 - Data Output (section 2.4) 4 - Video Output (section 2.6)
2 - Audio Output (section 2.5) 5 - On/Off Switch
3 - Power In (section 2.1)
Figure C – Rear Panel – Security
DX602-C1 Controls and Connectors
1 - On/Off Switch 6 - Interface (section 2.7)
