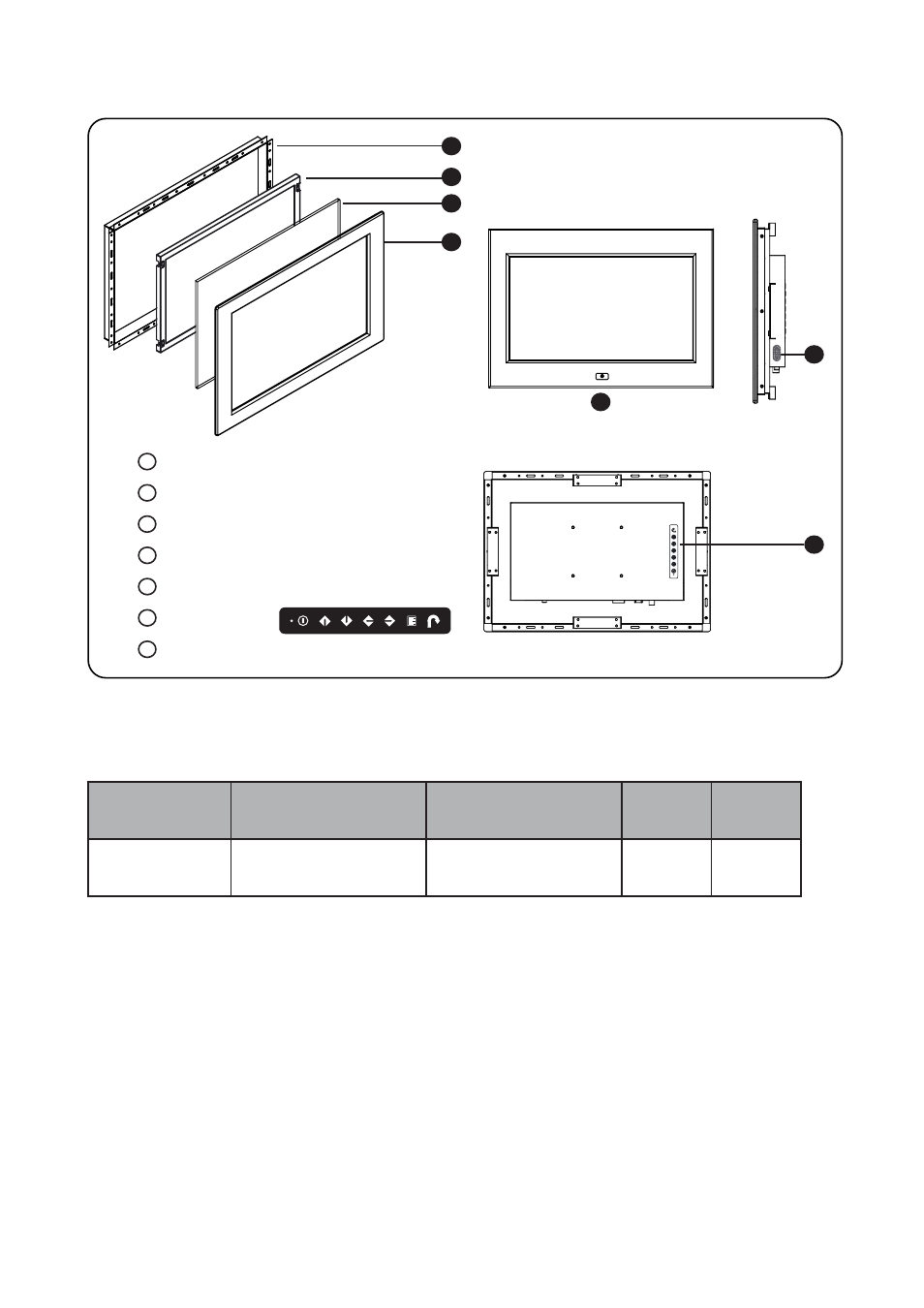

17" FHD LCD Display < 1.2 > Structure Diagram - AP / NAP-F17-TV
Rear case
LCD panel
Protective 3mm glass
6mm aluminum front bazel
Audio speaker, pair
LCD membrane
Remote sensor
1
2
3
4
5
6
Front view
1
2
3
4
Rear view
6
AP-F17-TV
NAP-F17-TV
P.2
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
AP-F17-TV
NAP-F17-TV
468.5 x 57.1 x 331 mm
18.4 x 2.2 x 13 inch
615 x 113 x 523 mm
24.2 x 4.4 x 20.6 inch
5.2 kg
11.4 lbs
8 kg
17.6 lbs
