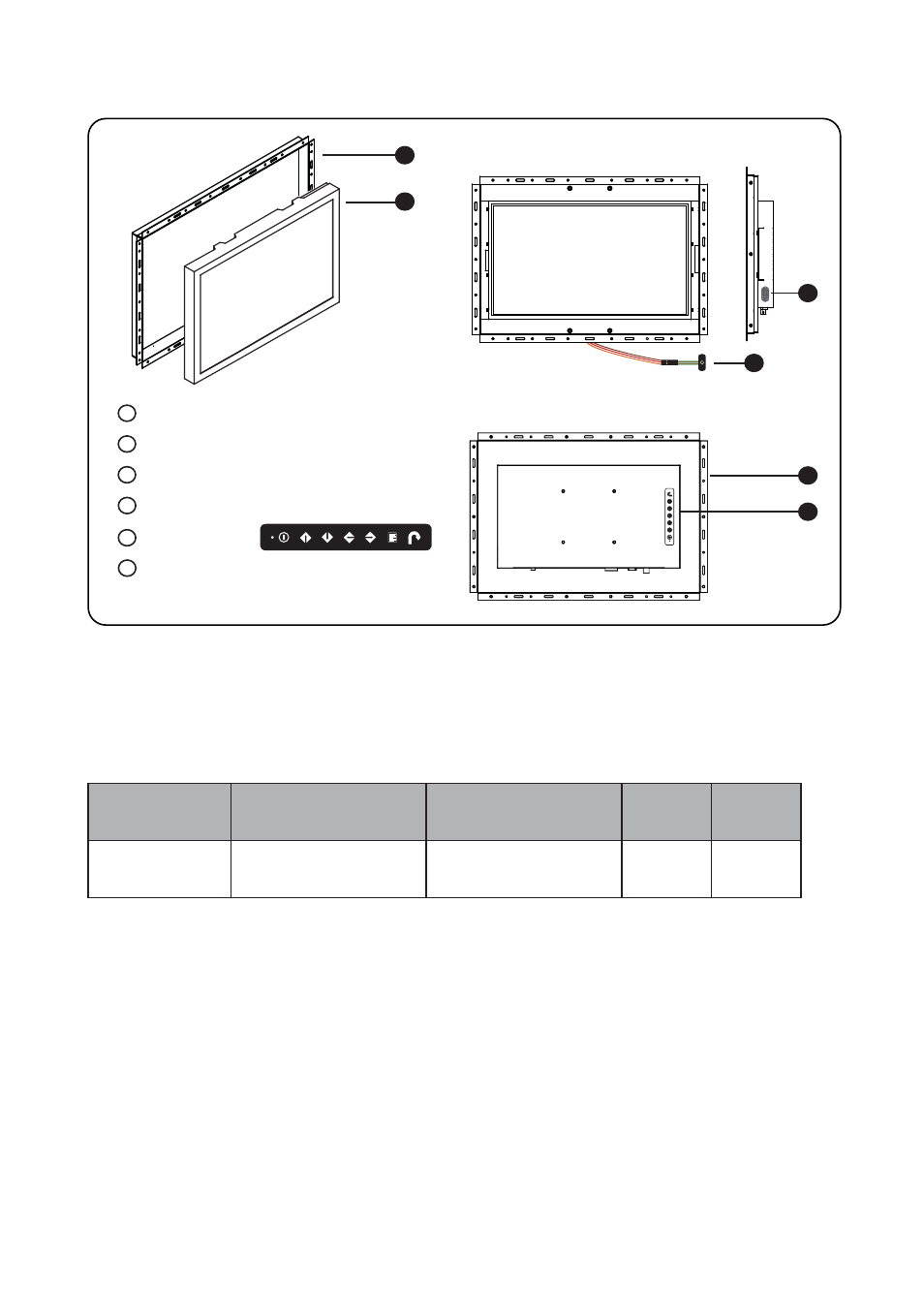

< 2.2 > Structure Diagram - OP-F17-TV
P.7
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
OP-F17-TV
465.5 x 50.6 x 328 mm
18.3 x 2 x 12.9 inch
615 x 113 x 523 mm
24.2 x 4.4 x 20.6 inch
3.4 kg
7.5 lbs
6.2 kg
13.6 lbs
Front view 1
2
Rear view
5
Rear case
LCD panel
Audio speaker, pair
Universal open frame mounting
LCD membrane
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
1
2
3
4
OP-F17-TV
4
3
5
6
6
