Austin Hughes OP-10 - Manual (Page 6)

UM-UV-621-10-Q215V1 www.austin-hughes.com
Rear case
LCD panel
3mm protective glass
( NEMA 4 / IP65 front protection for NAP series )
6mm aluminum front bazel
Audio speaker ( for Audio or TV option )
LCD membrane
Remote sensor
1
2
3
4
5
6
7
7
Front view
1
2
3
4
Rear view
6

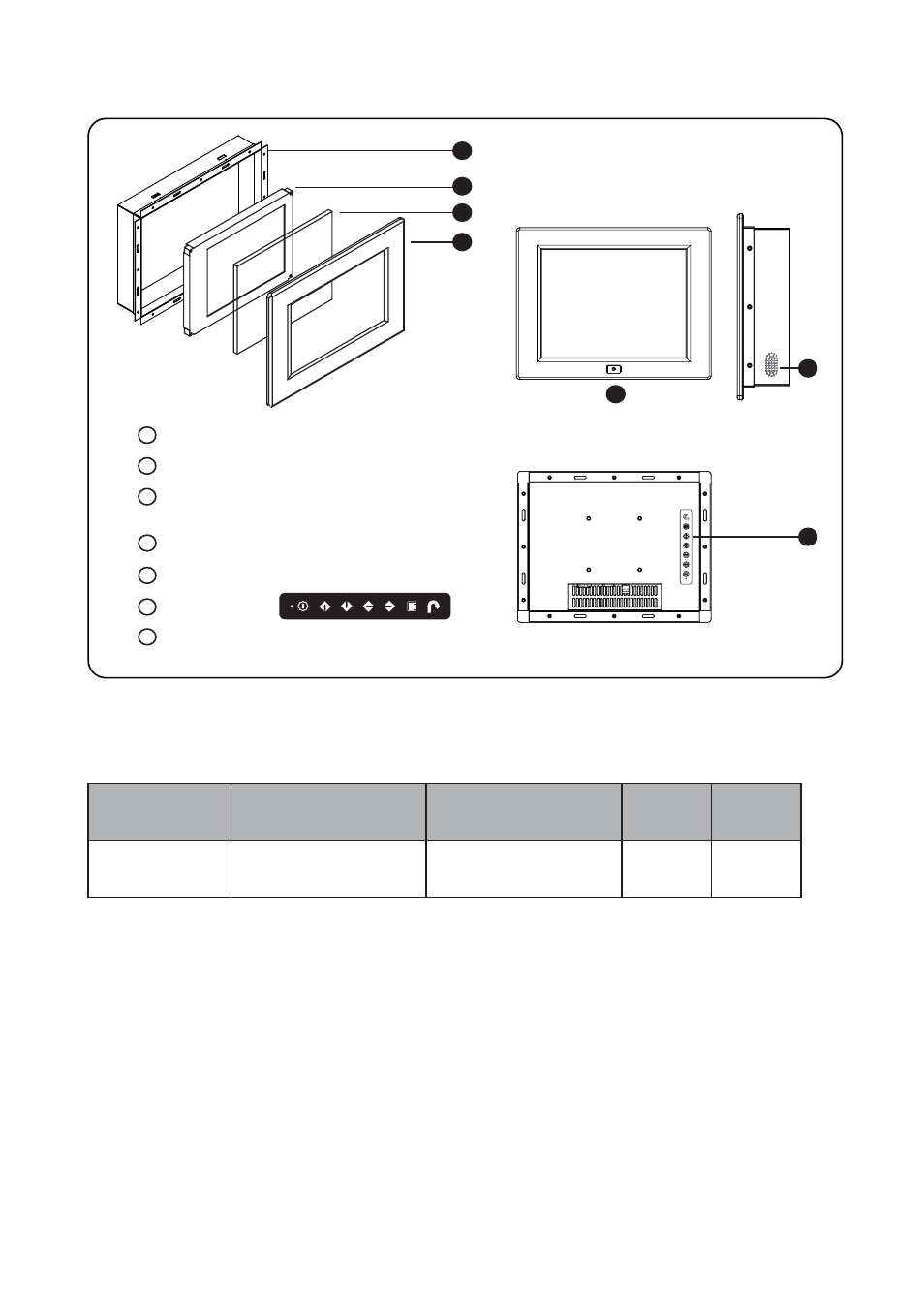

< 1.2 > Structure Diagram - AP / NAP-10
AP-10
NAP-10
P.2
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
284.7 x 62.8 x 222 mm
11.2 x 2.5 x 8.7 inch
515 x 117 x 429 mm
20.3 x 4.6 x 16.9 inch
2.6 kg
5.7 lbs
4.6 kg
10.1 lbs
AP-10
NAP-10
