UM-UV-621-10-Q215V1 www.austin-hughes.com
Rear case
LCD panel
Audio speaker ( for Audio or TV option )
Universal open frame mounting
LCD membrane
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
6
6
1
2
3
4
5

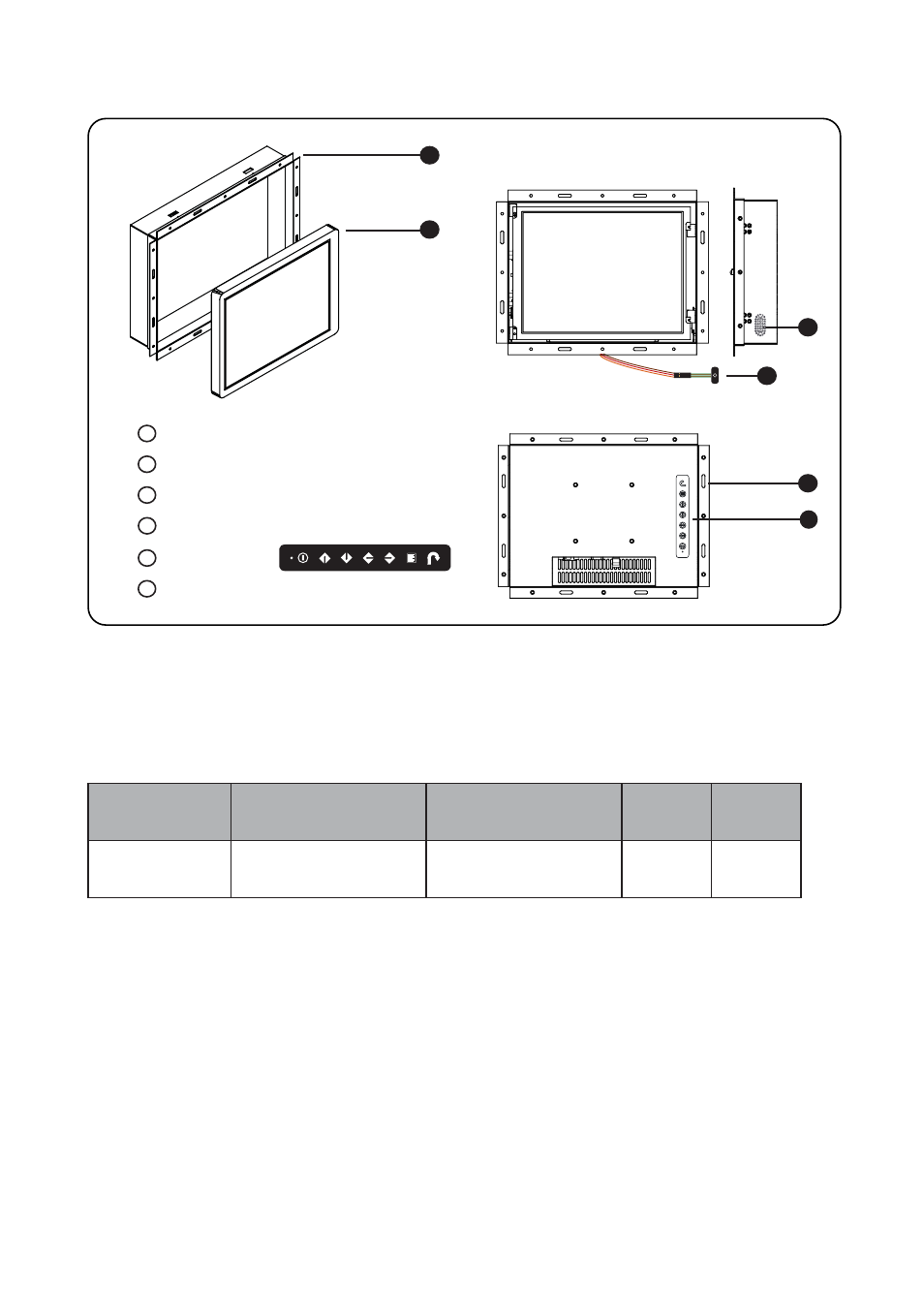

< 2.2 > Structure Diagram - OP-10
Front view
1
2
Rear view
5
OP-10
4
3
10.4" LCD Display
P.7
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
OP-10
281.7 x 56.8 x 219 mm
11.1 x 2.2 x 8.6 inch
515 x 117 x 429 mm
13.5 x 2.5 x 10 inch
1.8 kg
4 lbs
3.7 kg
8.1 lbs
