21.5" FHD LCD Display
7
Rear case
LCD panel
Protective 3mm glass
6mm aluminum front bazel
Audio speaker, pair
LCD membrane
Remote sensor
1
2
3
4
5
6
7
Front view
1
2
3
4
Rear view
6

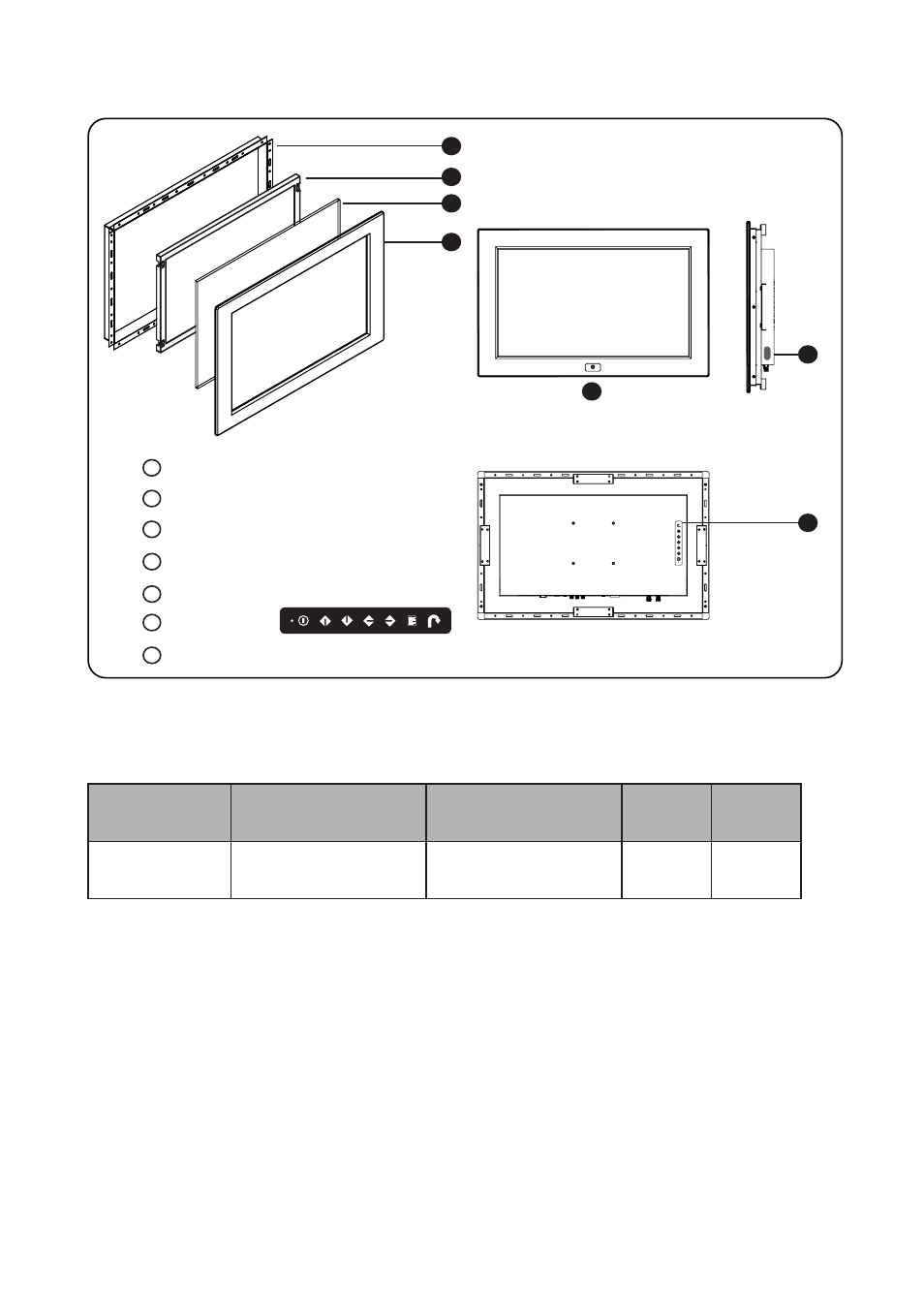

< 1.2 > Structure Diagram - AP / NAP-F21
AP-F21
NAP-F21
P.2
5
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
577.8 x 59.1 x 369.3 mm
22.7 x 2.3 x 14.5 inch
659 x 117 x 640 mm
25.9 x 4.6 x 25.2 inch
9 kg
19.8 lbs
12.7 kg
27.9 lbs
AP-F21
NAP-F21
