Austin Hughes OP-F21 - Manual (Page 12)

UM-UV-621-F21-Q215V1 www.austin-hughes.com

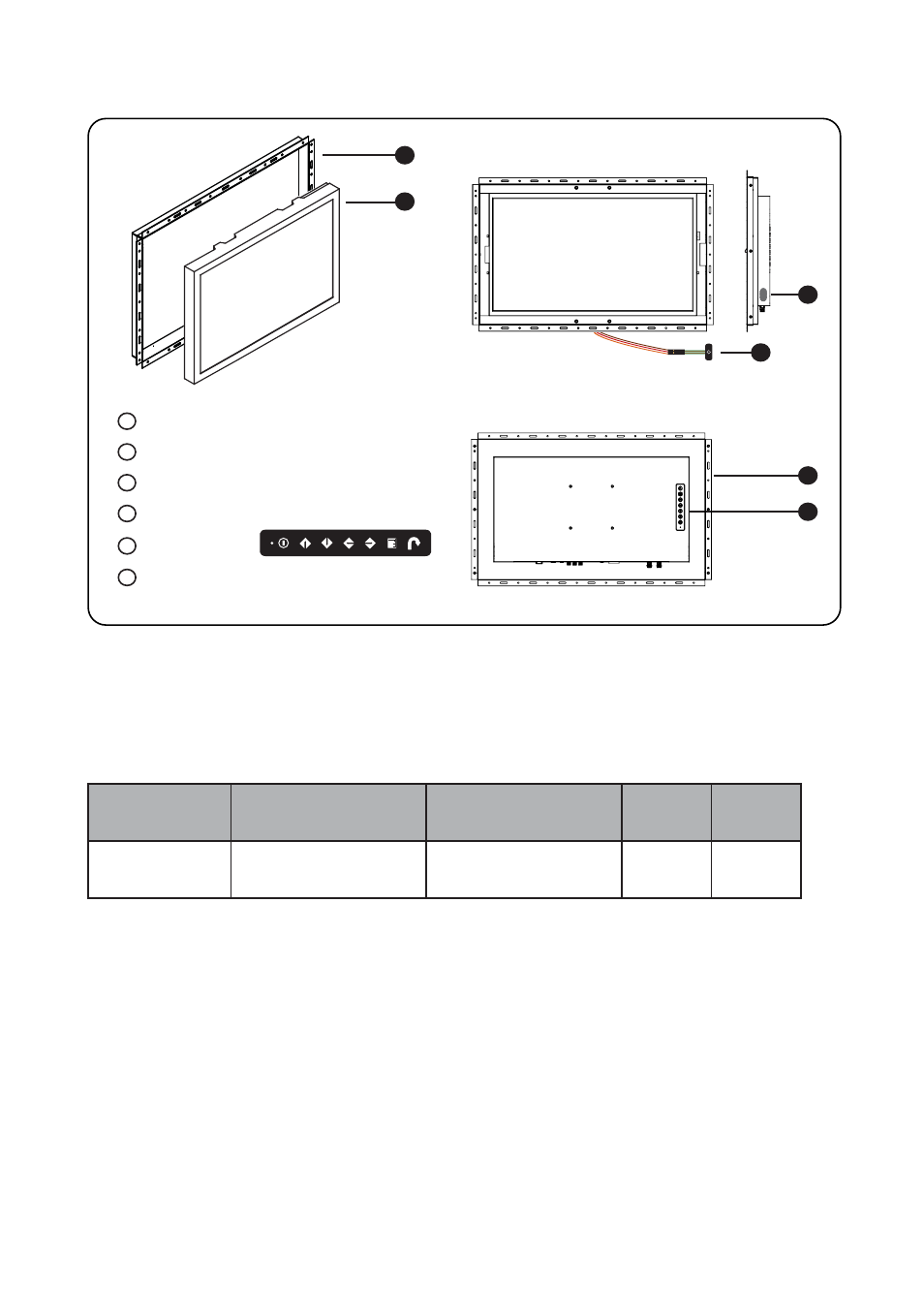

< 2.2 > Structure Diagram - OP-F21
Front view 1
2
Rear view
5
4
3
P.7
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
OP-F21
574.8 x 52.6 x 366.3 mm
22.6 x 2.1 x 14.4 inch
659 x 117 x 640 mm
25.9 x 4.6 x 25.2 inch
6.7 kg
14.7 lbs
10.4 kg
22.9 lbs
Rear case
LCD panel
Audio speaker, pair
Universal open frame mounting
LCD membrane
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
1
2
3
4
5
6
OP-F21
6
