Austin Hughes OP-W55 - Manual (Page 11)

UM-UV-621-W55-Q215V1 www.austin-hughes.com
55" FHD LCD Display
3
5
4
Front view
Rear view
Rear case
LCD panel
Universal open frame mounting
Audio speaker, pair
LCD membrane
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
1
2
3
4
5

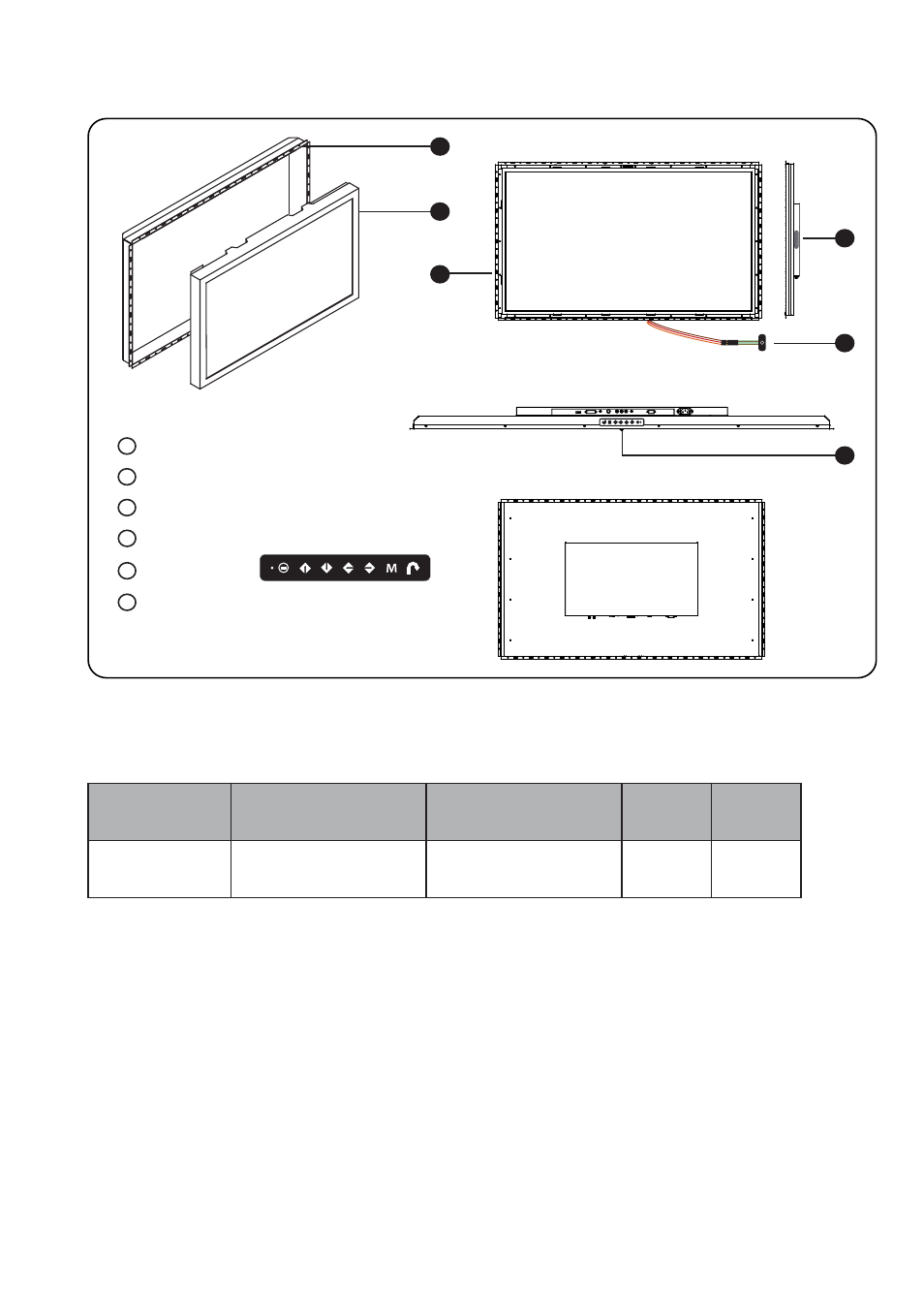

< 2.2 > Structure Diagram - OP-W55
OP-W55
P.6
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
OP-W55 To be confi rmed
1455 x 917 x 212 mm
57.3 x 36.1 x 8.3 inch
40.2 kg
88.4 lbs
49.3 kg
108.5 lbs
1
2
Bottom view
6
6
