Page 25: Tpc-19 driver

UM-UV-621-H19-Q115V1 www.austin-hughes.com

Model

24V

48V

110 ~ 125V

Input rating

Input voltage:

24-Volt

48-Volt

110-Volt

Input range:

18 ~ 36V

36 ~ 75V

66 ~ 160V

Input current

- No load

50 mA

40 mA

- Full load

4880 mA

2442 mA

993 mA

Output rating

Output voltage:

12-Volt

Output current:

4.16A

8.4A

Effi ciency

85%

92%

< 4.6 > Options : Touchscreen & driver

19” High Brightness LCD Display

TRB / TCB Driver

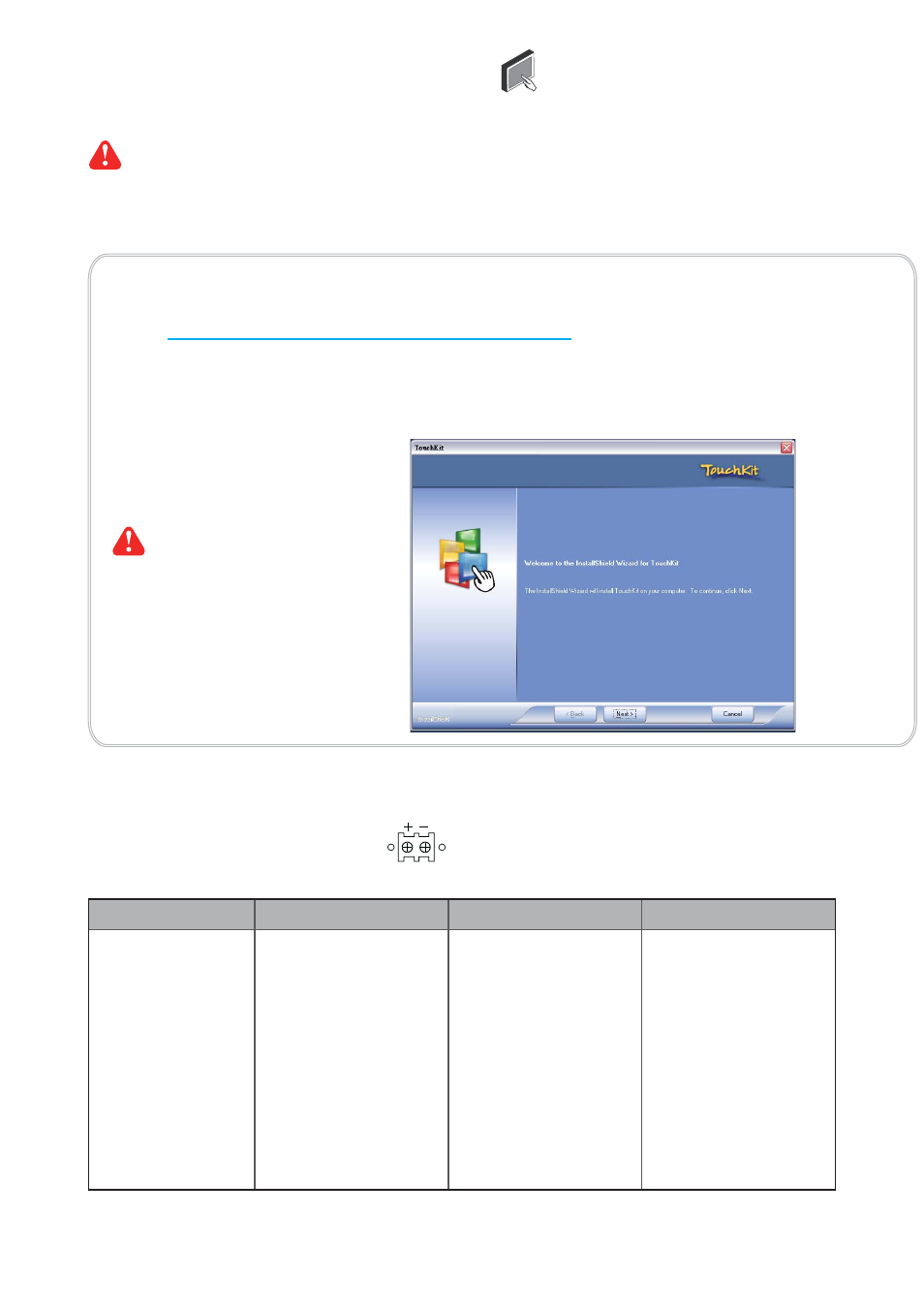

Step 1.

Run the bundled CD disc or download the driver from the link below :

http://www.austin-hughes.com/downloads/UVDL/driver.html

Step 2.

Double click the Setup.exe

Step 3.

Follow the installation instruction to fi nish the setup

Step 4.

After installation, run the TouchKit program & the “4 point calibration”

Please follow the below steps to setup the touch screen:-

Please do the initial calibration
after the fi rst setup

P.20

Connect the USB cable from the USB port on the LCD to a computer. The touch screen supports
easy Plug-and-Play operations. There is no need to install additional drivers on the computer.

TPC-19 Driver

< 4.7 > Options : DC Power
