Austin Hughes HOP-19 - Manual (Page 12)

UM-UV-621-H19-Q115V1 www.austin-hughes.com
Rear case
LCD panel
Audio speaker ( for HDMI, Audio or TV option )
Universal open frame mounting
LCD membrane
Extended remote sensor membrane cable
( 66cm from AD board to sensor end )
1
2
3
4
5
6
6
Front view
1
2
Rear view
5
HOP-19
4
3

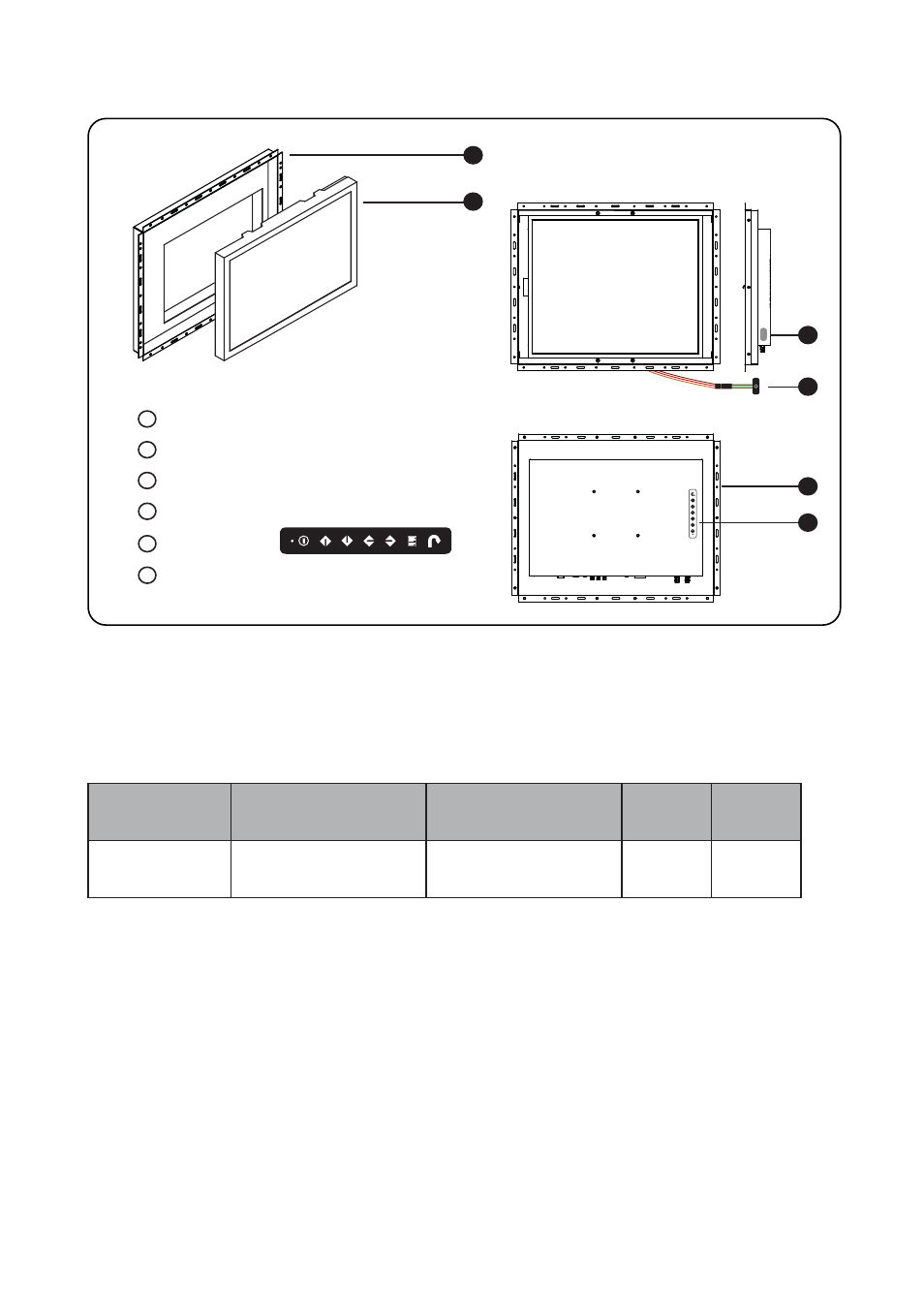

< 2.2 > Structure Diagram - HOP-19
P.7
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
HOP-19
473.5 x 57.6 x 381.1 mm
18.6 x 2.3 x 15 inch
651 x 124 x 597 mm
25.6 x 4.9 x 23.5 inch
5.7 kg
12.5 lbs
8.5 kg
18.7 lbs
