UM-UV-621-X17-Q215V1 www.austin-hughes.com
Model 12V 24V 48V 110 ~ 125V
Input rating
Input voltage: 12-Volt 24-Volt 48-Volt 110-Volt
Input range: 9 ~ 18V 18 ~ 36V 36 ~ 75V 66 ~ 160V
Input current
- No load 50 mA 50 mA 50 mA 40 mA
- Full load 4950 mA 2450 mA 1220 mA 993 mA
Output rating
Output voltage: 12-Volt 12-Volt 12-Volt 12-Volt
Output current: 4.16A 4.16A 4.16A 8.4A
Effi ciency 84% 85% 85% 92%
17” High Resolution LCD Display < 4.4 > Options : Touchscreen & driver
< 4.5 > Options : DC Power

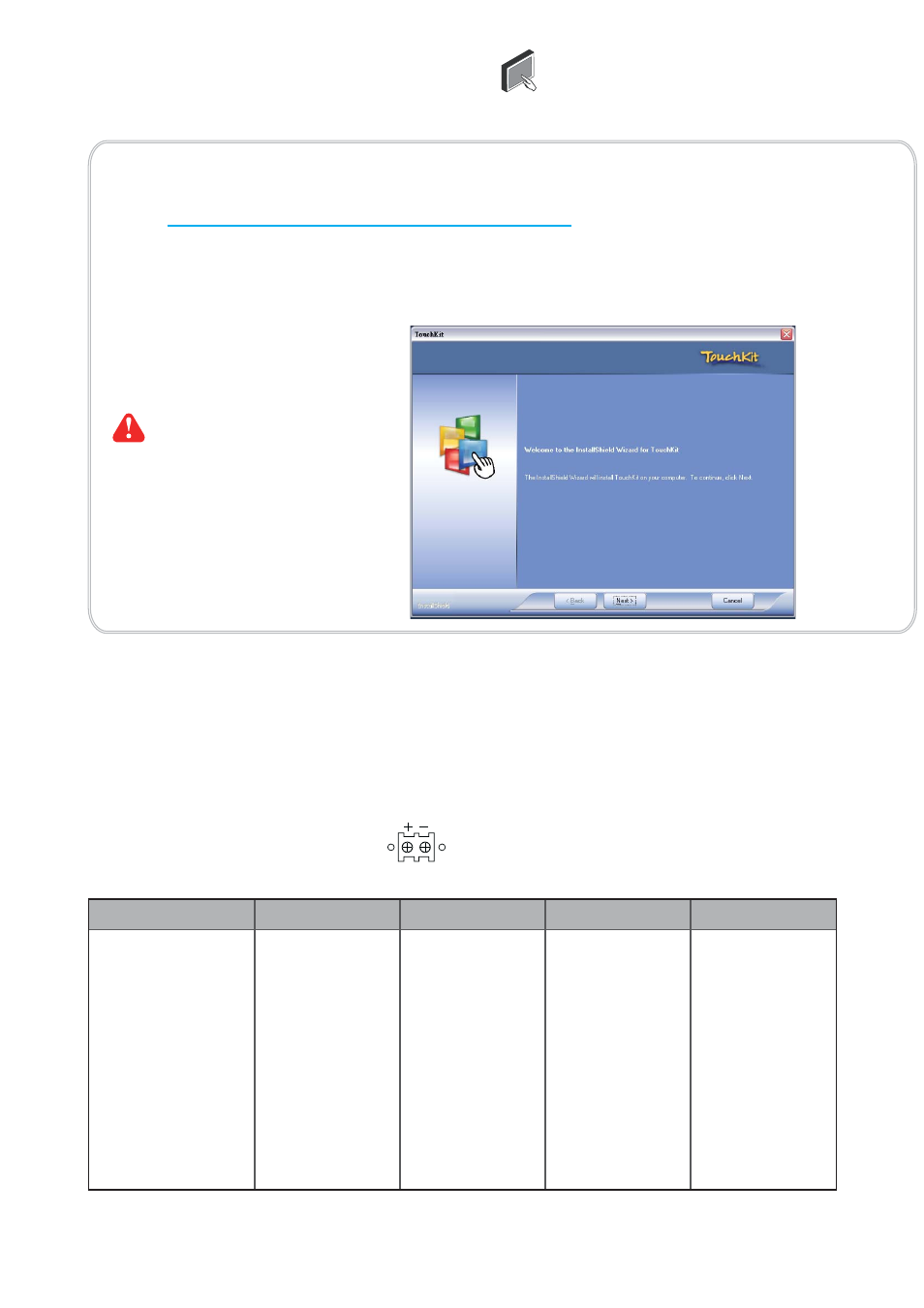

TRB / TCB Driver
Step 1. Run the bundled CD disc or download the driver from the link below :
http://www.austin-hughes.com/downloads/UVDL/driver.html
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to fi nish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please follow the below steps to setup the touch screen:-
Please do the initial calibration
after the fi rst setup
P.21
