UM-CV-751-RP-F821TV-Q215V1 www.austin-hughes.com
RP-F821TV
P.4
■

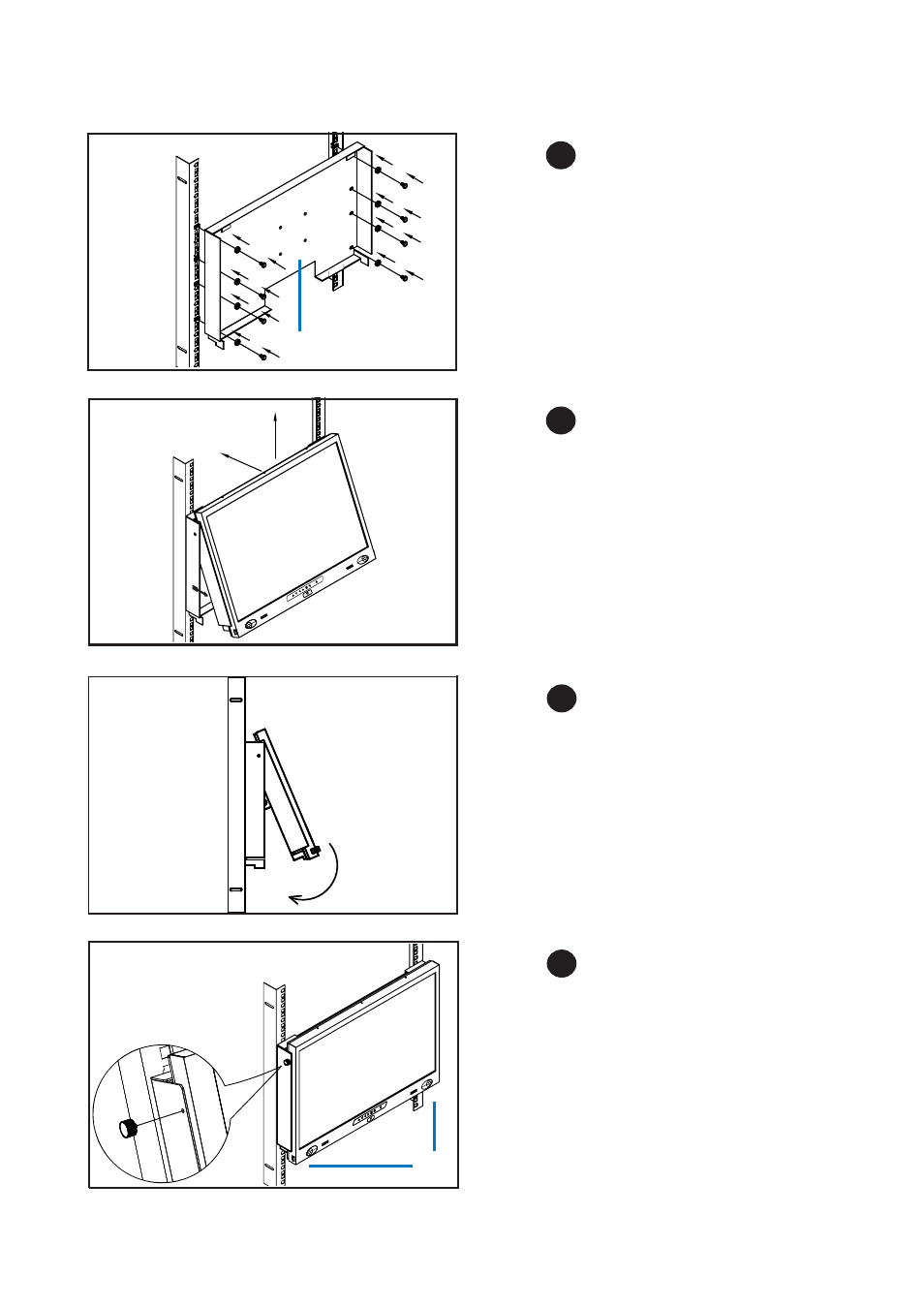

Mount the rear bracket with M6 screw set.
■
8 x M6 screw set are required.
M6 screw sets are not provided.
Step 1
Step 2
■
Insert the upper part of the RP-F821
display panel into the rear bracket.
■
Push the lower part of the RP-F821
display panel into the rear bracket.
Step 3
Step
4
■
Fix the RP-F821TV display panel into the rear
bracket with two fasteners ( Left & right side ).
■
Lock the RP-F821TV display panel by the
latch ( on the bottom left & right side ).
rear bracket
latch
Fastener screw
< 1.3 > Rear Mounting Bracket Installation
