Part 2. Usage

P.5

PS/2 KVM Usage

2.1 KVM Button

Power ON

■

Turn off all servers and KVM switches

■

Make sure all cables / connectors are properly connected

■

Recommend Power ON sequence is monitor, KVM switch fi nally computer

Bank no.

7-Segment BANK LED indication

PC port LEDs

Online

: Blue LED on indicating a PC is connecting to the port

Active

: Green LED on indicating a selected channel

Channel button

Press to select channel from 01 to 08

PS/2 DB-15 KVM 8 ports

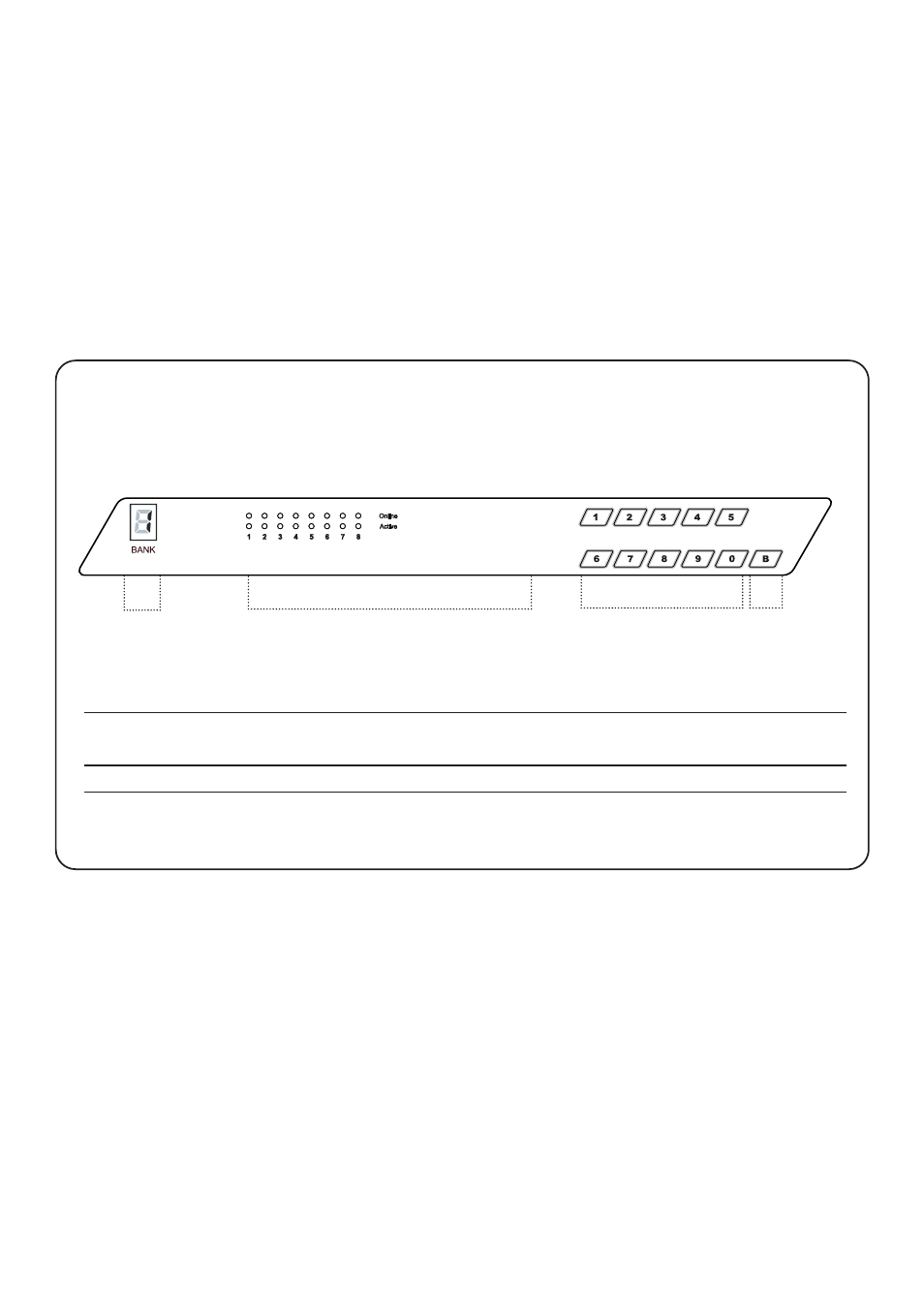

Front Panel - Port LED Indications

Bank no.

PC port LEDs

Channel

button

Button
button
