Austin Hughes 801 - Manual (Page 6)

www.austin-hughes.com UM-CV-751-PS2KVM-KIT-Q215V1
Cascade
To console PS/2 & VGA
P.3
■

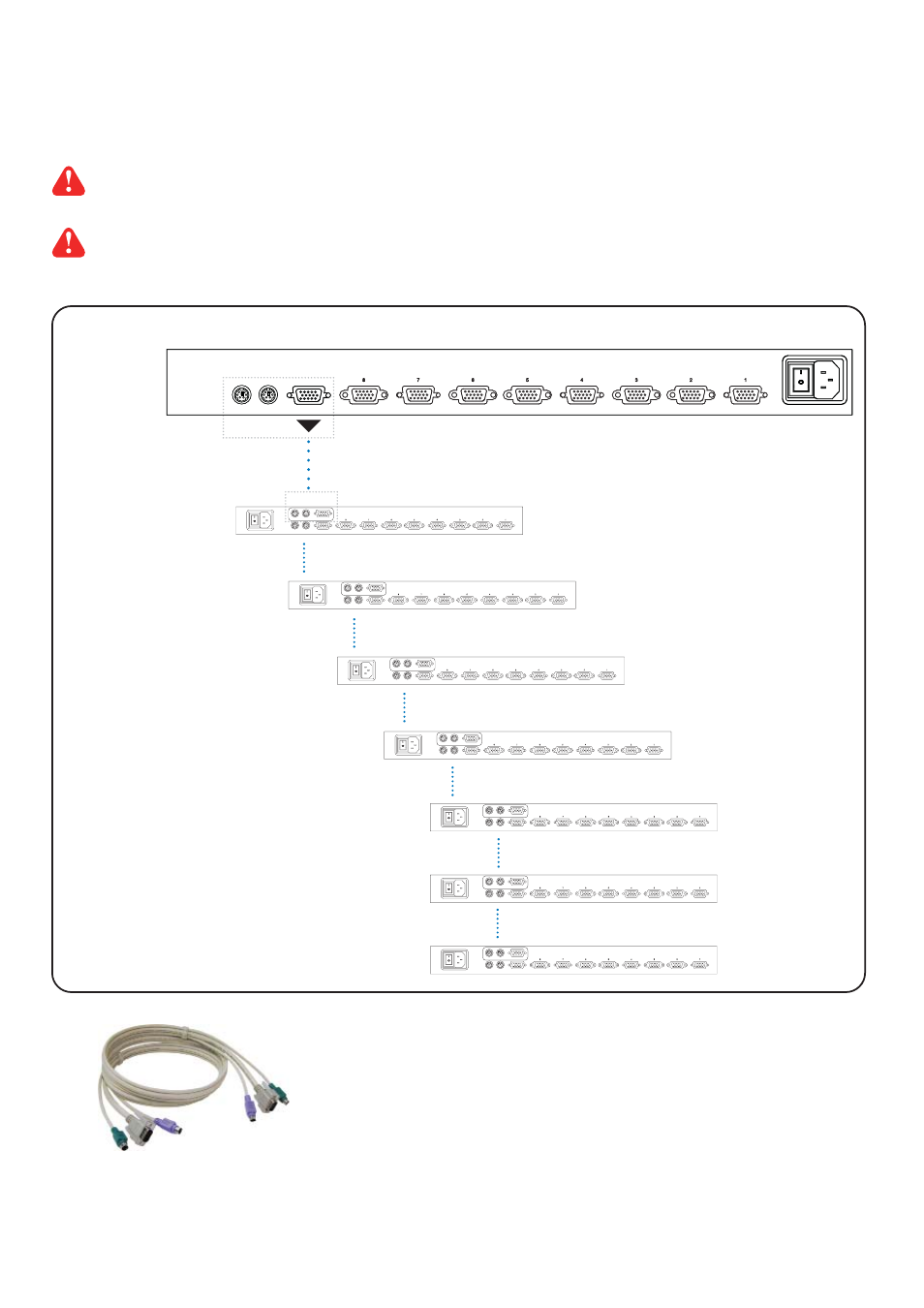

Cascade up to 8 levels, 64 servers
■
Cascading multiple KVM with CA-6 cascade cable.
< 1.3 > KVM Cascade
CV-801
CV-801
CV-801
CV-801
CV-801
CV-801
CV-801
Cascaded KVMs from level 2 to 8 must be the models of CV-801.
When multiple PS/2 DB-15 KVMs cascade together, the master KVM at level 1 will take all control of
other slave KVM switches (e.g. level 2 to 8).
Master KVM
Slave KVM
level 2
Slave KVM
level 8
Slave KVM
level 7
Slave KVM
level 6
Slave KVM
level 5
Slave KVM
level 4
Slave KVM
level 3
CA-6
■
6ft PS/2 KVM cascade cable
Drawer KVM Rear Kit
PS/2 DB-15 KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
Standalone KVM
