Page 20
UM-CV-751-MKVM-Q215V3 www.austin-hughes.com
Front
Rear
Front
Rear

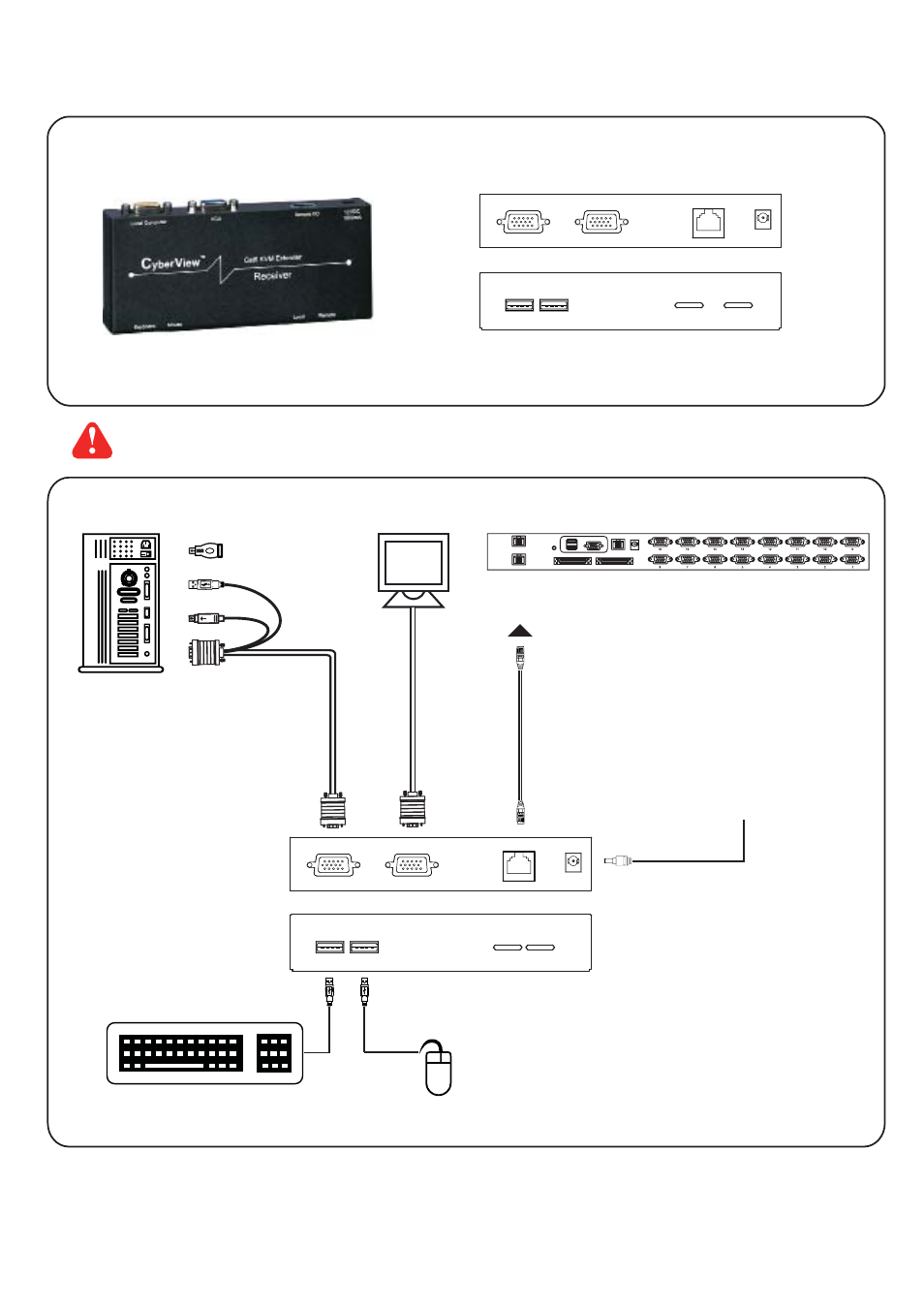

How to use a receiver to connect a remote console
Receiver
K/B Mouse
Local
Remote
Local
Computer
Monitor
Power
USB
Remote I/O
Monitor
CE-6
Combo
KVM cable
Cat6 cable
up to 150m
12V DC Power
Adapter
VGA
cable
Remote
Console
Button
to
PC
Button
to
KVM switch
P.15
The receiver provides a hotkey function for remote console. Please refer to P.19
Local computer
( Optional setup )
Matrix DB-15 KVM
