HOW TO PREPARE THE MACHINE FOR OPERATION
WARNING: Always remove the electrical plug from the
electrical outlet before installing or changing the pad or brush.
How To Install The Brush Or Pad Driver
To install the brush or pad driver, follow this
procedure:
1. Put the handle in the vertical position.
2. To lock the handle, push the locking lever down.See figure 4.
3. Tilt the machine backward until the handle is on the floor. See figure
5.
4. Put one foot on each side of the machine. See figure 5.
5. Align the lugs (1) on the locking plate into the pad driver adapter
openings (2). See figure 6.
6. To lock the brush or pad into position, turn the brush or pad driver
clockwise.
7. Turn the brush or pad counterclockwise to unlock and remove the
brush.
8. Lift the machine to the vertical position.
NOTE: To prevent damage to the brush or pad driver, remove the
accessory while not in use. Keep the brush in a cool, dry place.
How To Adjust The Handle
To adjust the handle, follow this procedure:
1. The locking lever is on the lower part of the handle tube. Use your
foot to lift the lever. See figure 3.
2. Lower the handle to the best operating position.
NOTE: For the best operating position, keep your back straight,
bend only your arms.
3. Using your foot, push the locking lever down.
4. Hold the handle against your body for the best control.

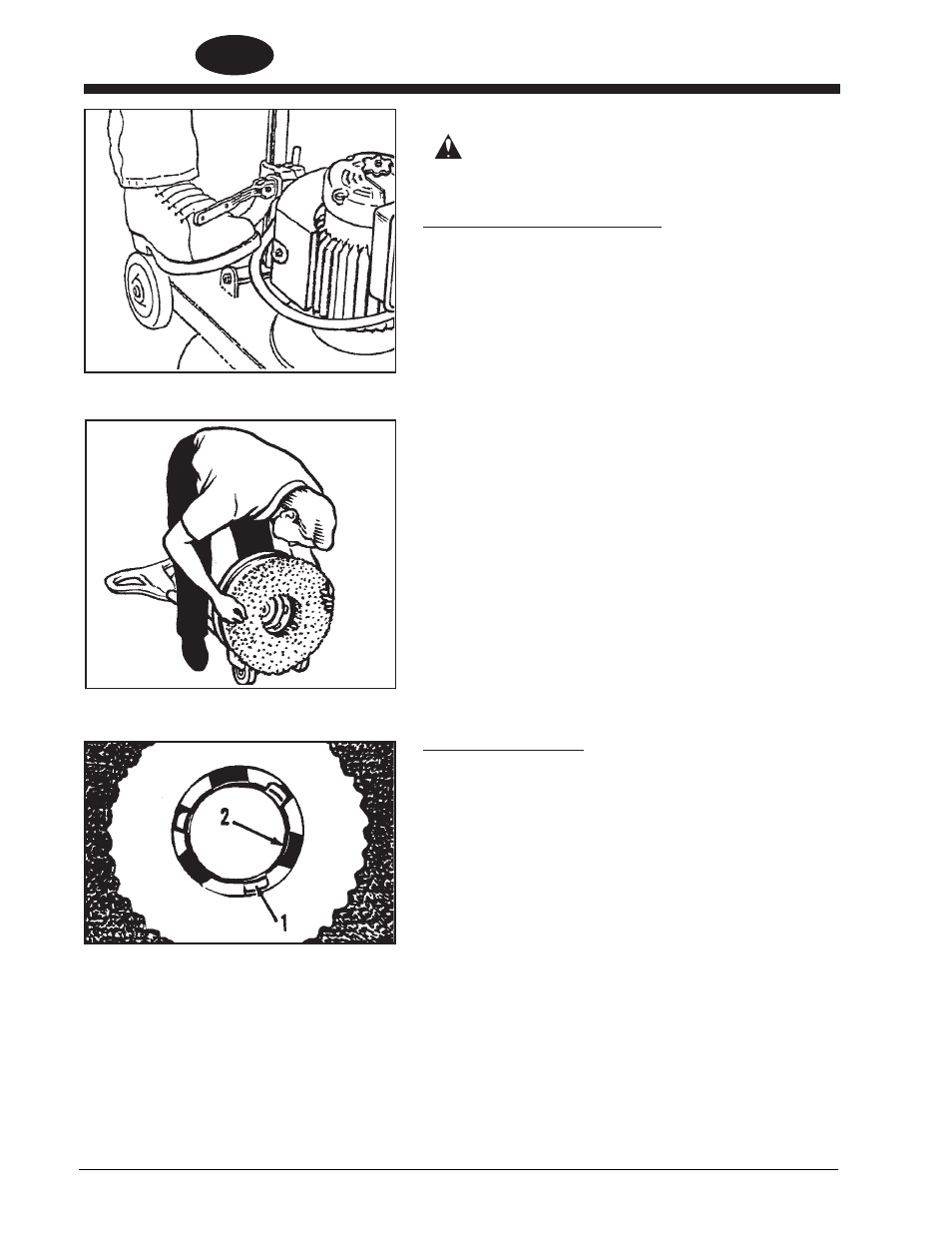

Figure 4
Figure 5
Figure 6
1. The lugs.
2. The drive adpater openings.
