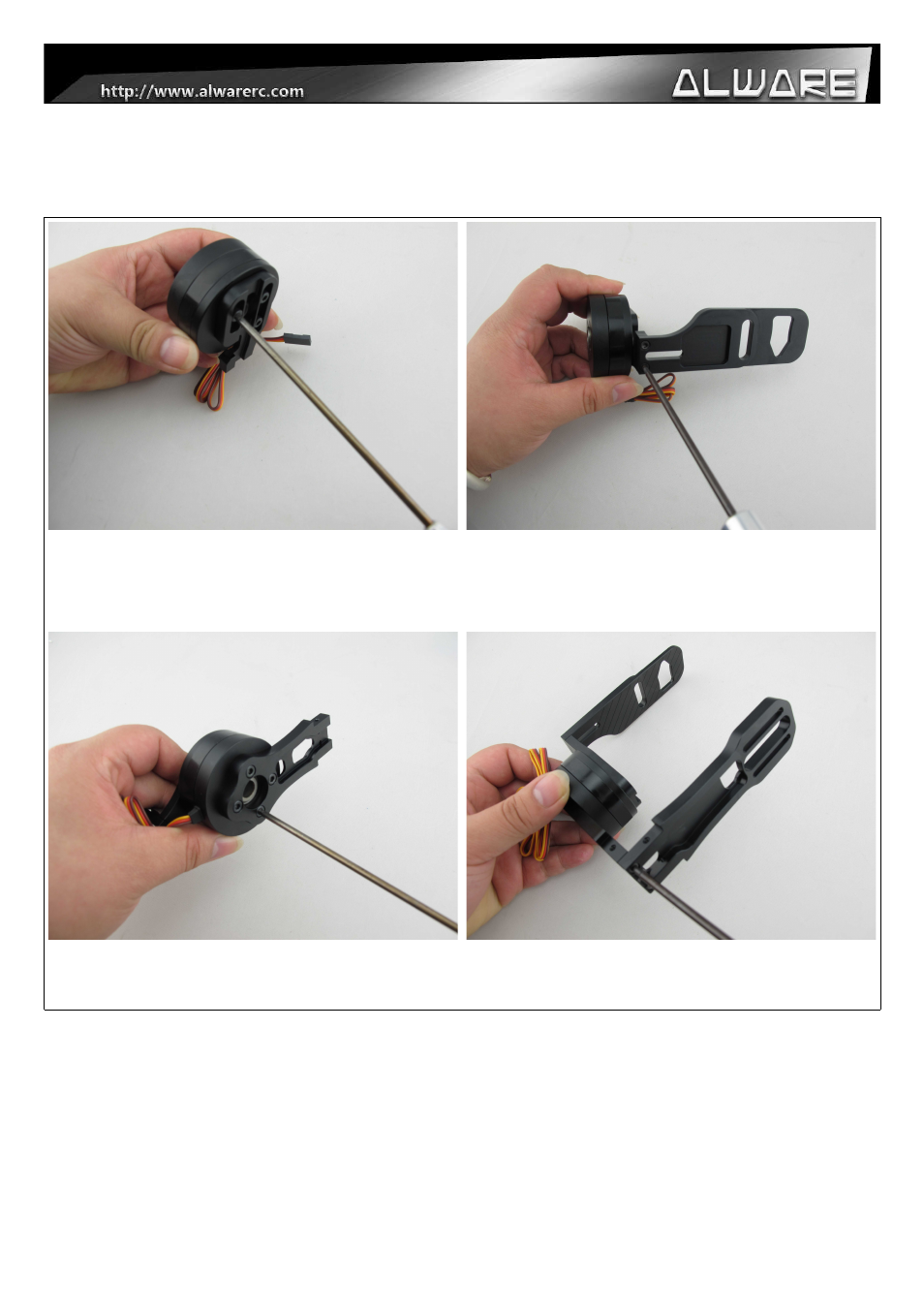

4. Assembly Step :

**Always apply little amount of Threadlock when installing metal parts.

Use M3x5mm screw only, screw longer
then 5mm will damaged the motor!

M2.5x6mm Hex Cap Screw

M3x5mm Hex Cap Screw

M2.5x6mm Hex Cap Screw
