Connectors & Jumpers 21
MI-220

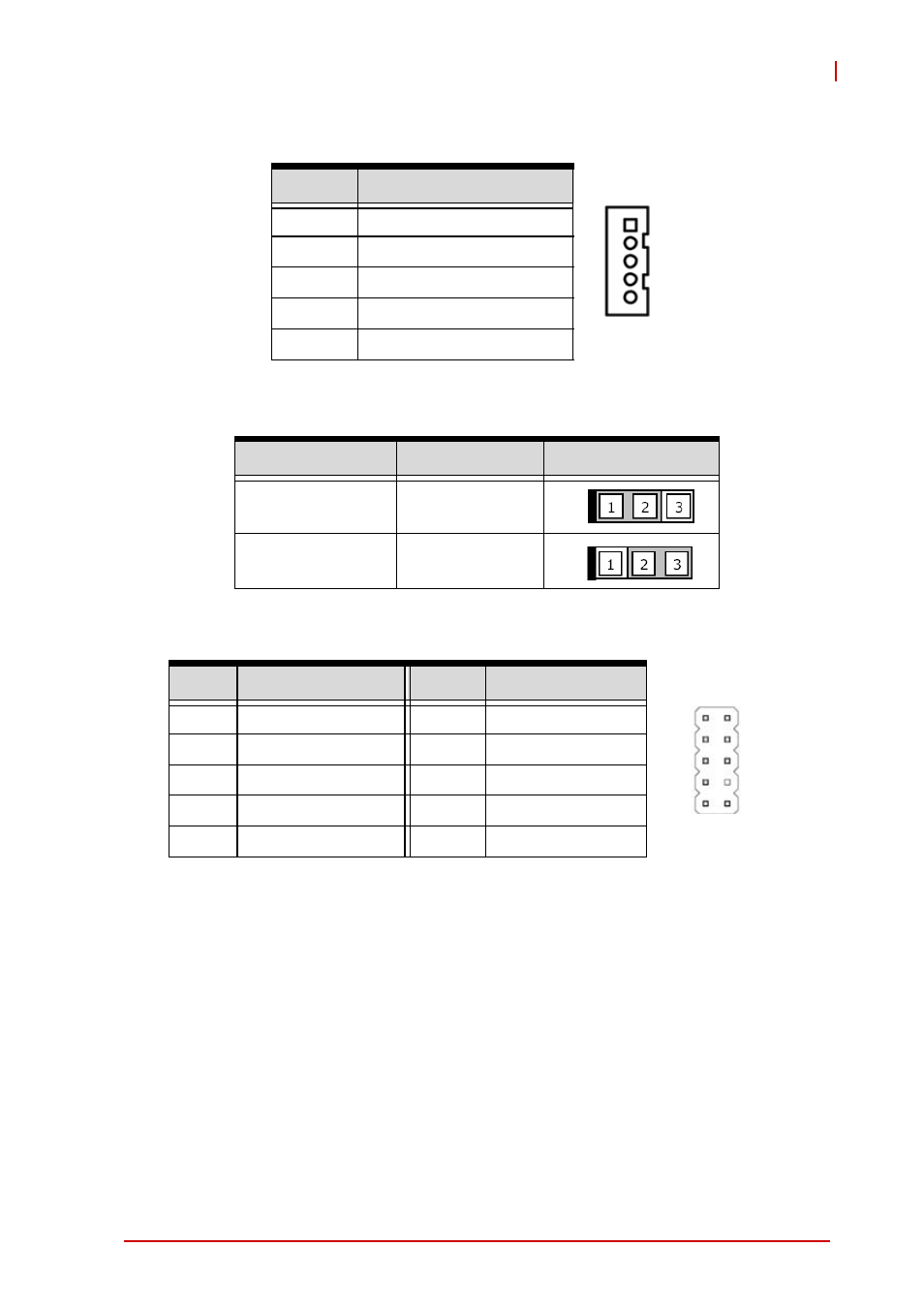

LCD Inverter Connector (JBLK1)
LCD Backlight Voltage Jumper (JCLRT_C2)
LPC Pin Header (JLPC1)
Pin # Signal
1 +12V
2 GND
3 LVDS_BKL
4 Bright
5 +5V
Status Connection JCLRT_C2
+5V (default) 1 – 2
+3V 2 – 3
Pin # Signal Pin # Signal
1 V3.3 2 GND
3 BIOS_DISABLE# 4 LPC_AD3
5 PRST_SIO 6 LPC_AD2
7 CLK33M_LPC 8 LPC_AD1
9 LPC_FRAME# 10 LPC_AD0
1
2 1
