Hardware Information 23
IMB-M40H

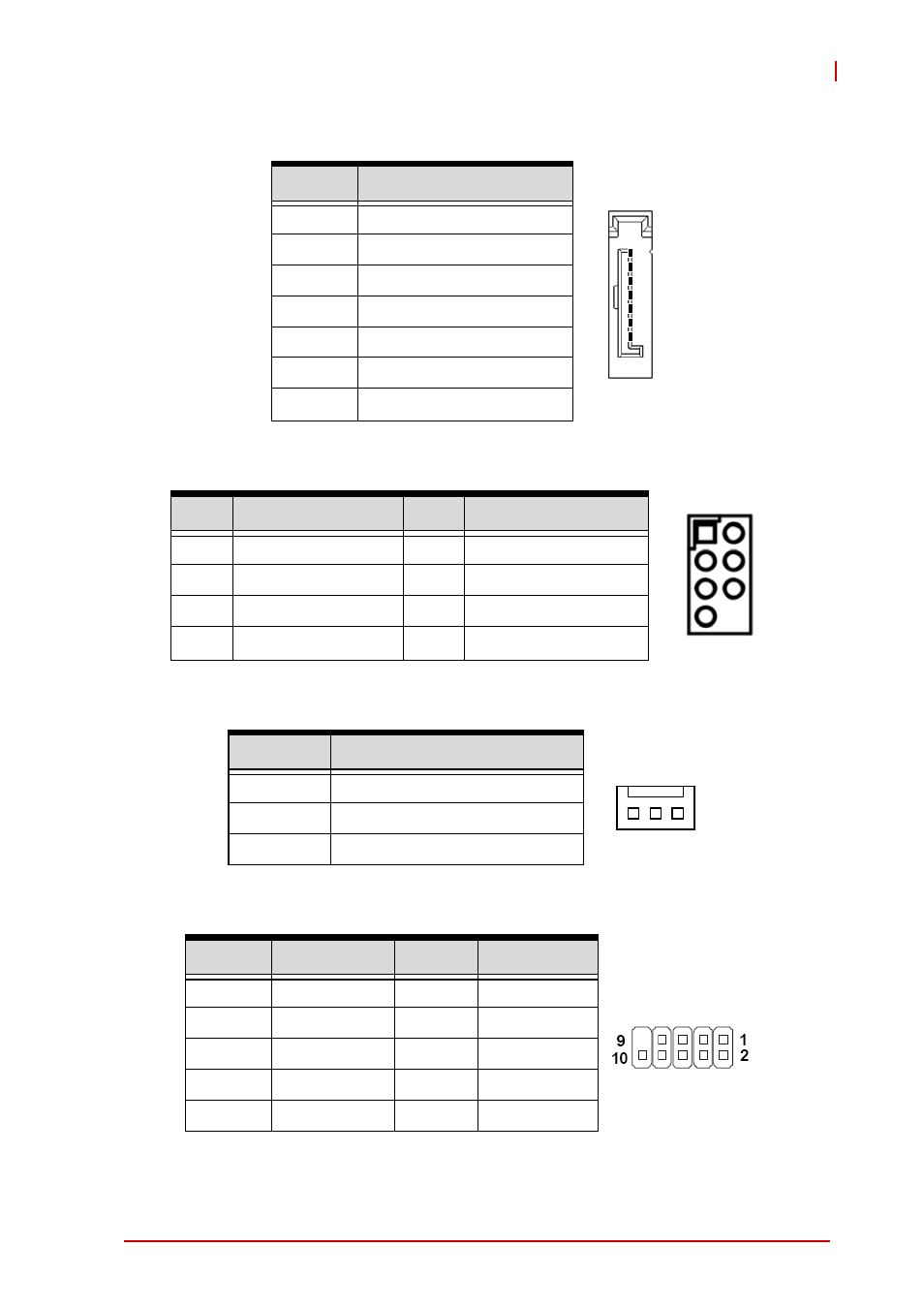

SATA Connectors (SATA1~4)
SPI Pin Header (SPI_CN1)
System Fan Connector (SYS_FAN)
USB 2.0 Pin Headers (USB56/78/910)
Pin # Signal
1 GND
2 TXP
3 TXN
4 GND
5 RXN
6 RXP
7 GND
Pin # Signal Pin # Signal
1 +3V ROM 2 GND
3 F_SPI_CS# 4 F_SPI_CLK
5 F_SPI_MISO 6 F_SPI_MOSI
7 SPI_HOLD# 8 NC
Pin # Signal
1 GND
2 Fan Power (+12V)
3 Fan Tachometer
Pin # Signal Pin # Signal
1 +5V 2 +5V
3 USB0- 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 Key 10 NC
1
7
1
1 3
