2 Pin Locations and Signal Descriptions
2.1 Pin Locations

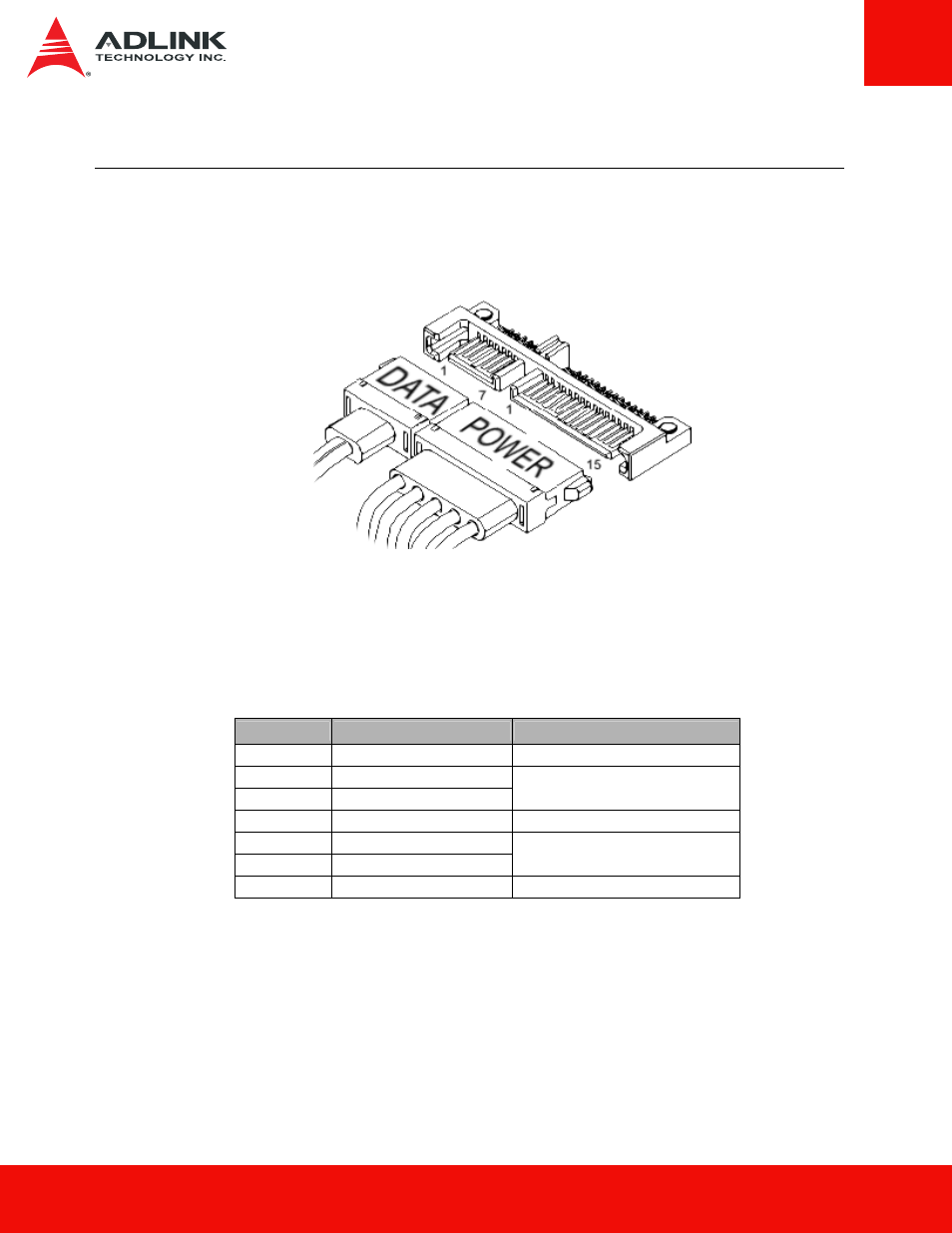

The data and power connector pin locations of the ASD26-HA2 series 2.5" SATA 3 Gb/s SSD are as shown
below.
2.2 Signal Descriptions
Data Connector:
Name
Type
Description
S1
GND
S2
A+
S3
A-
Differential Signal Pair A
S4
GND
S5
B-
S6
B+
Differential Signal Pair B
S7
GND
Table 13: Serial ATA Data Connector Pin Definitions
14
