12 Introduction
1.4.3 Application Software
ADLINK’s Dynamic Signal Assistant is a ready-to-run software util-
ity designed for dynamic signal acquisition modules, such as the
PXI-9527. This software provides a windows-based configuration
interface for setting parameters, in addition to a real-time visual-
ized data display on the screen. An instrument-like user interface
is also provided for basic waveform generation. The Dynamic Sig-
nal Assistant can also log data acquired from hardware modules.
With the Dynamic Signal Assistant, signal acquisition and genera-
tion can be performed in just a few minutes with no programming
required. A brief overview of the application’s operations follows.
The Device Setting window allows selection of a virtual device or
any installed ADLINK DSA devices. Selecting an Operation Mode
allows separate or simultaneous AI and AO operation.

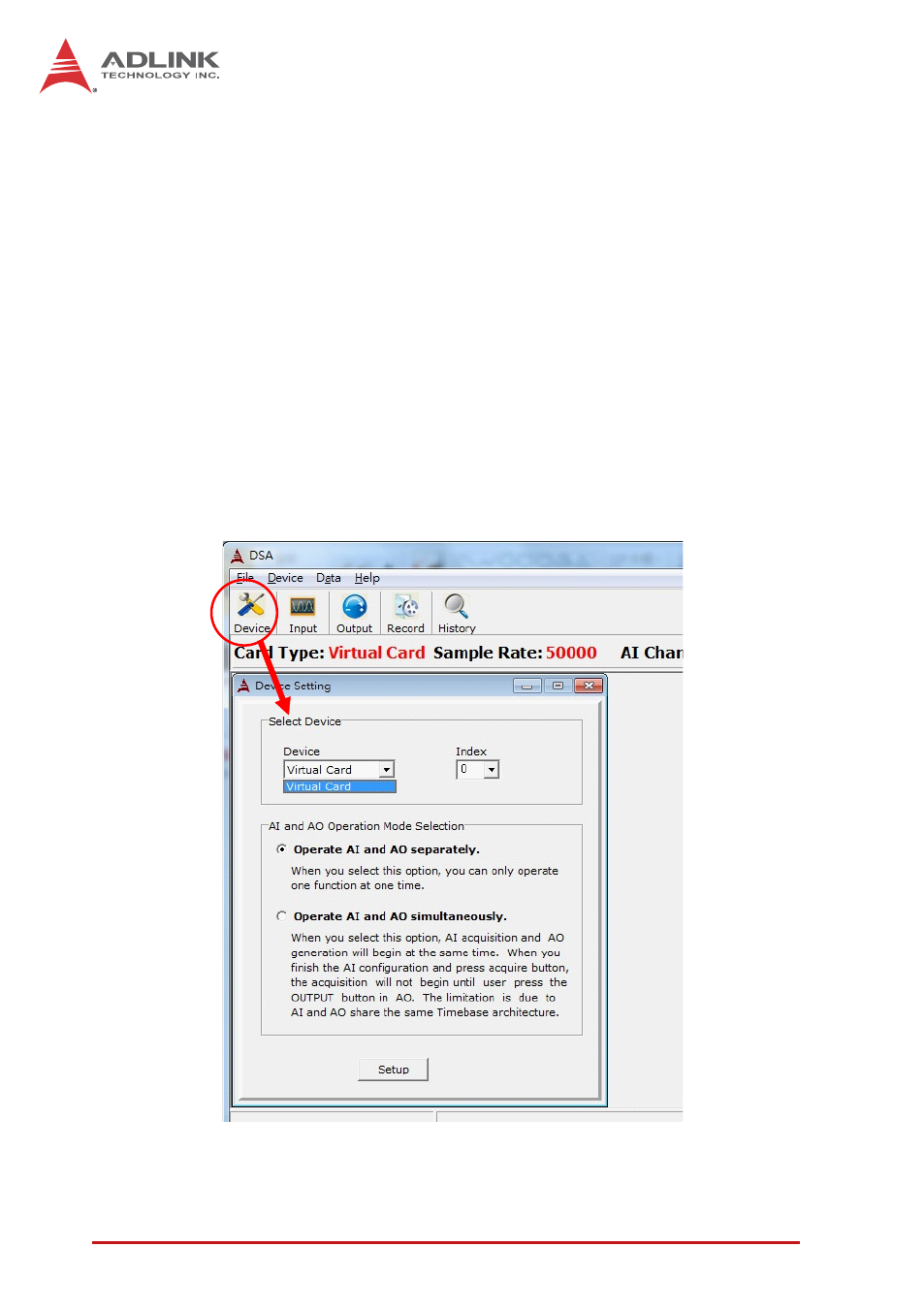

Figure 1-3: DSA Device Setting Interface
