2 analog output status register, 3 current output and range control, Analog output status register – ADLINK PCM-6308V+ User Manual

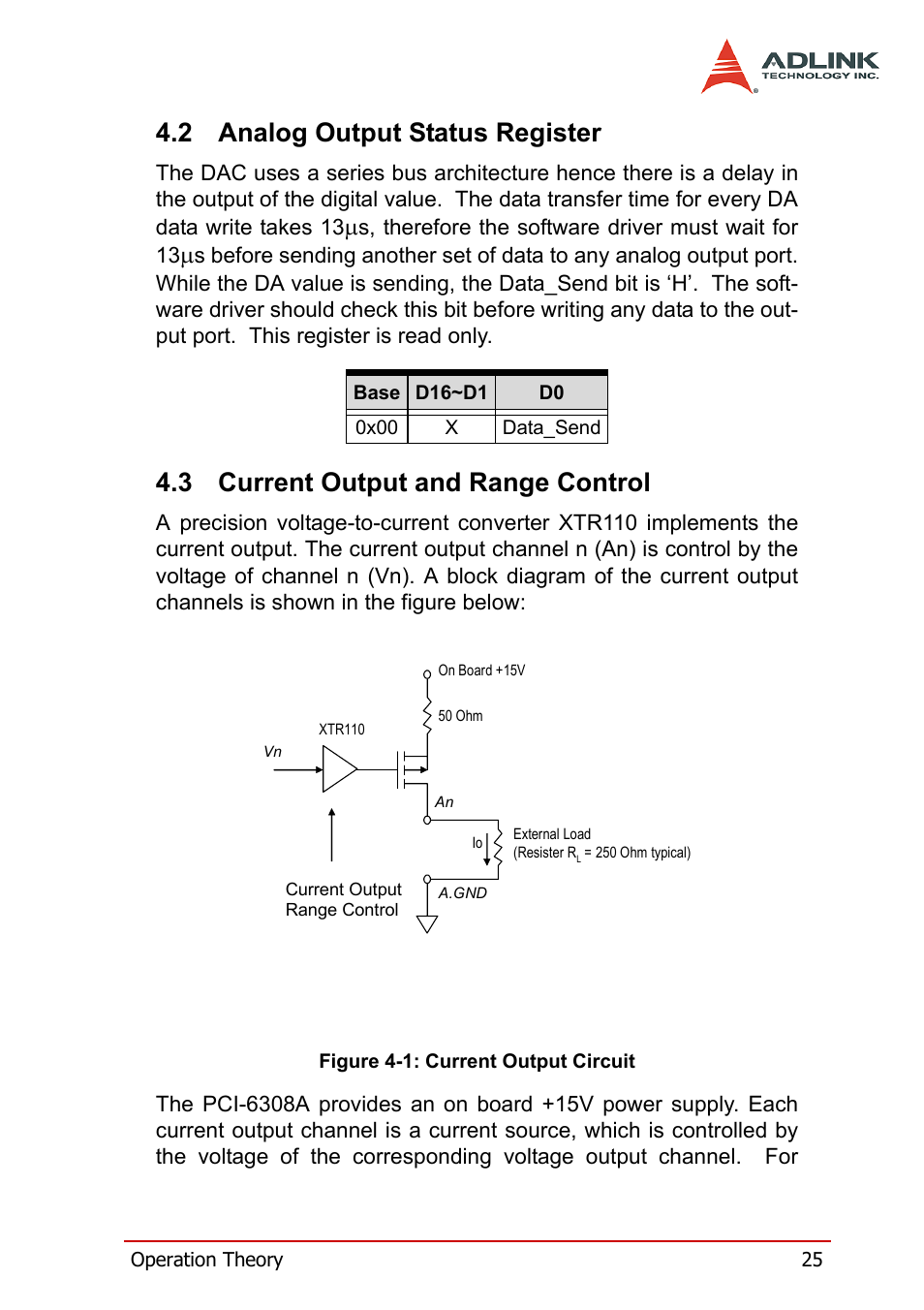

Page 35: Current output and range control, Figure 4-1: current output circuit
