4.2.3 Technical data
The main features of the Dimplex solar control units SOLCU1/2/3 are summarised in
Figure 28.

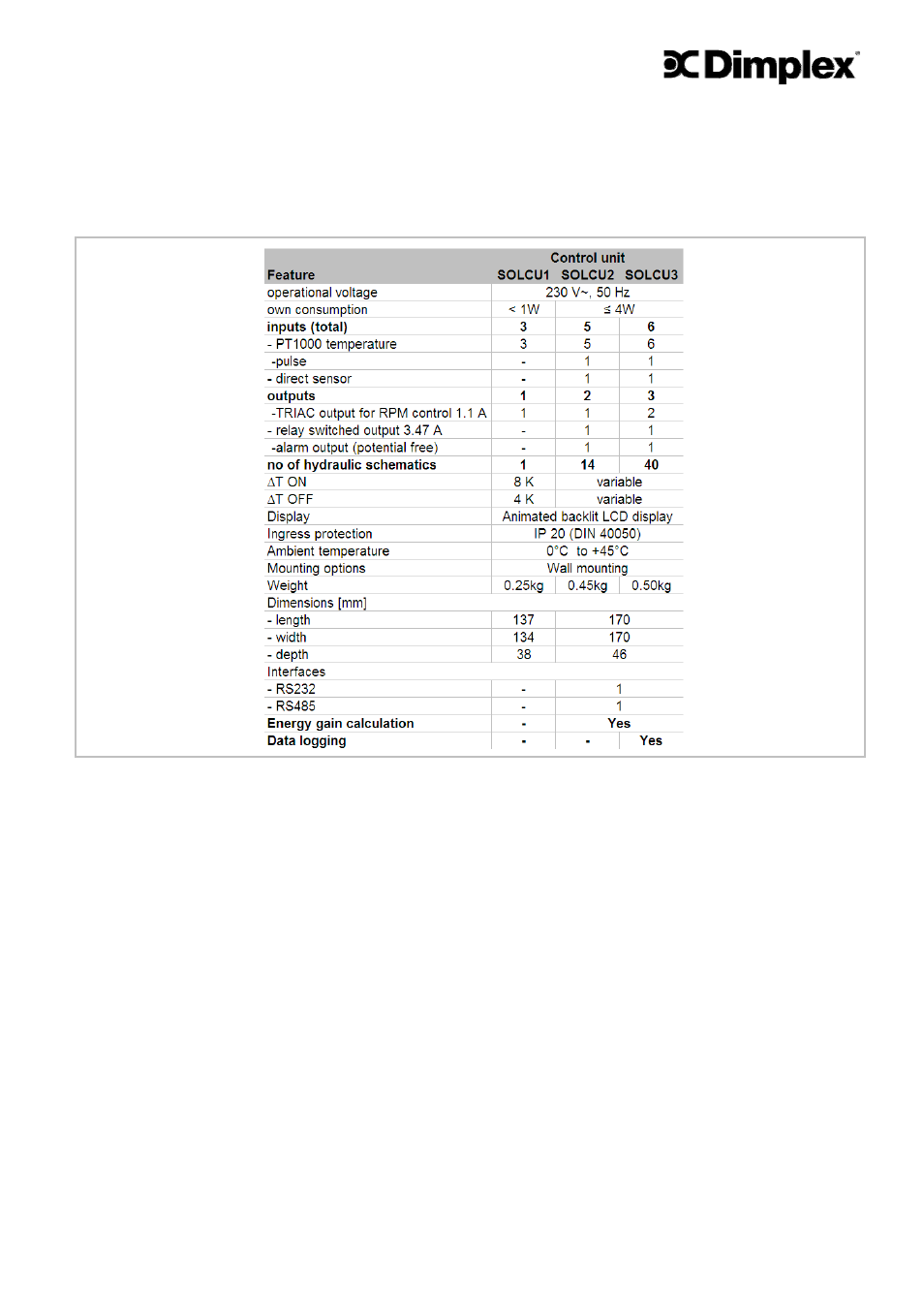

Figure 28 – Technical data overall view Dimplex solar control units SOLCU1/2/3
4.3 Dimplex solar pump unit SOLPU1/2
4.3.1 General description
The Dimplex solar pump units SOLPU1 and SOLPU2 comprise a number of features aid-
ing in the installation, commissioning, operation and maintenance of the solar thermal
installation. The components of the pump unit are depicted in Figure 29 followed by a
brief description of their function.
