4.1.4 Space requirement
Depending on the mounting method the foot print required by the solar collector instal-
lation varies. The dimension for the on roof and free standing mounting kits do not in-
clude the space required to fit the connection pipes as these vary depending on the pipe
feed through chosen. The dimensions provided for the integrated roof kits include the
pipe work as the pipe feed through is part of the integrated roof kit.

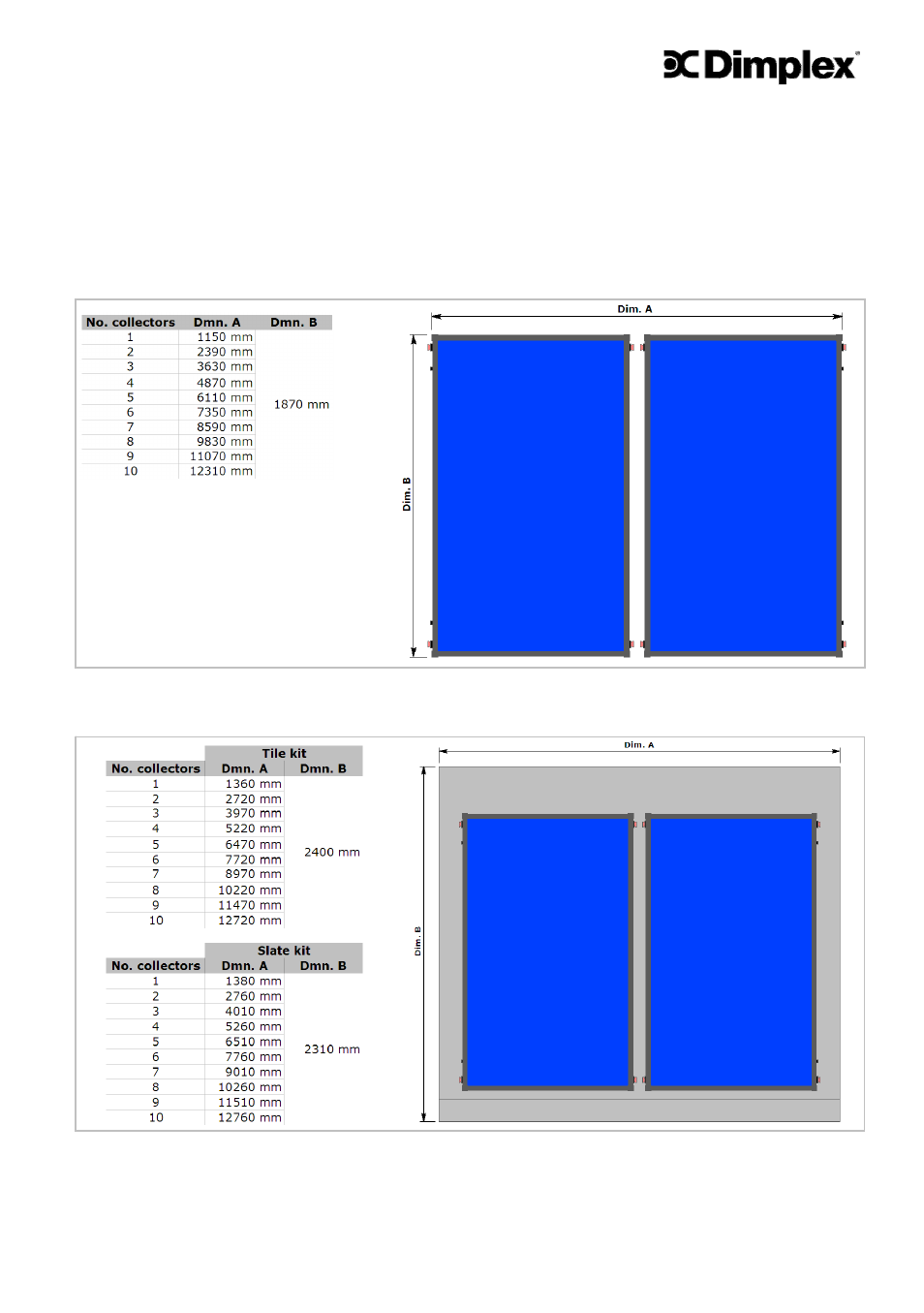

Figure 22 – Space requirement Dimplex SOLC220 on roof installation
Figure 23 – Space requirement Dimplex SOLC200 in roof installation
