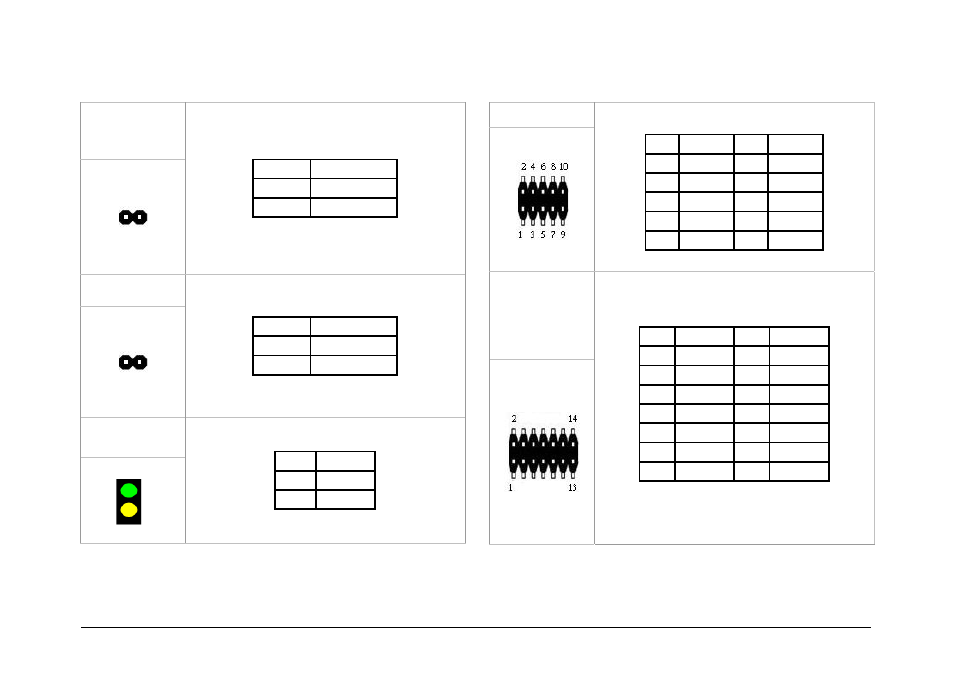

20.JP4
STATUS SETTING
OPEN SLAVE
CLOSE MASTER
22.J3
STATUS SETTING
OPEN LOCK
CLOSE UNLOCK
23.LED1
LED SIGNAL
GREEN Power
YELLOW Hard Disk
24.USB2
PIN SIGNAL PIN SIGNAL
1 5V 2 5V
3 USB0 - 4 USB1-
5 USB0+ 6 USB1+
7 GND 8 GND
9 GND 10 GND
TV-OUT
(AR-B5230SD
ONLY) PIN SIGNAL PIN SIGNAL
1 YG 2 NC
3 GND 4 NC
5 CVBS/Pb-S 6 NC
7 GND 8 NC
9 C/Pr-G 10 NC
11 GND 12 NC
13 GND 14 NC
