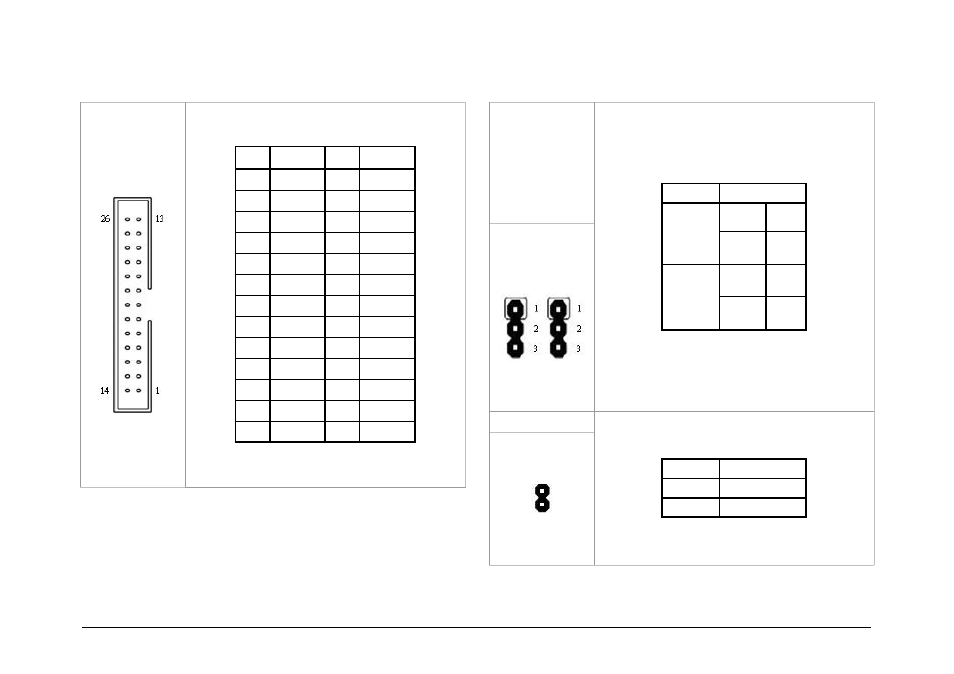

17.DVI1
PIN SIGNAL PIN SIGNAL
1 GND 2 TD0-
3 TD1+ 4 GND
5 TD2- 6 TCK+
7 HPD 8 VCC
9 RED 10 GREEN
11 BLUE 12 VSYNC
13 HSYNC 14 TD0+
15 GND 16 TD1-
17 TD2+ 18 GND-
19 TCK- 20 SCL1
21 SDA1 22 GND
23 GND 24 GND
25 SCL2 26 SDA2
18.JP8 &
JP9
FSB SETTING
100MHz
JP8 2-3
JP9 1-2
133MHz
JP8 2-3
JP9 2-3
JP9 JP8
19.JP3
STATUS SETTING
OPEN 33MHz
CLOSE 66mHZ
Page8/10 AR-B5230 Series Mamual Part NO:220010347-G
