AR-B9622 User’s Guide
4-2
The block diagram shows that AR-B9622 still needs components to be used for LCD panel. The inverter board
provides the control for the brightness and the contrast of the LCD panels while the inverter is the one that supplies
the high voltage to drive the LCD panel. Each item will be explained further in the section.
AR-B9622
CPU Board
Pin 1
CN5
LCD
Panel
Inverter & Contrast

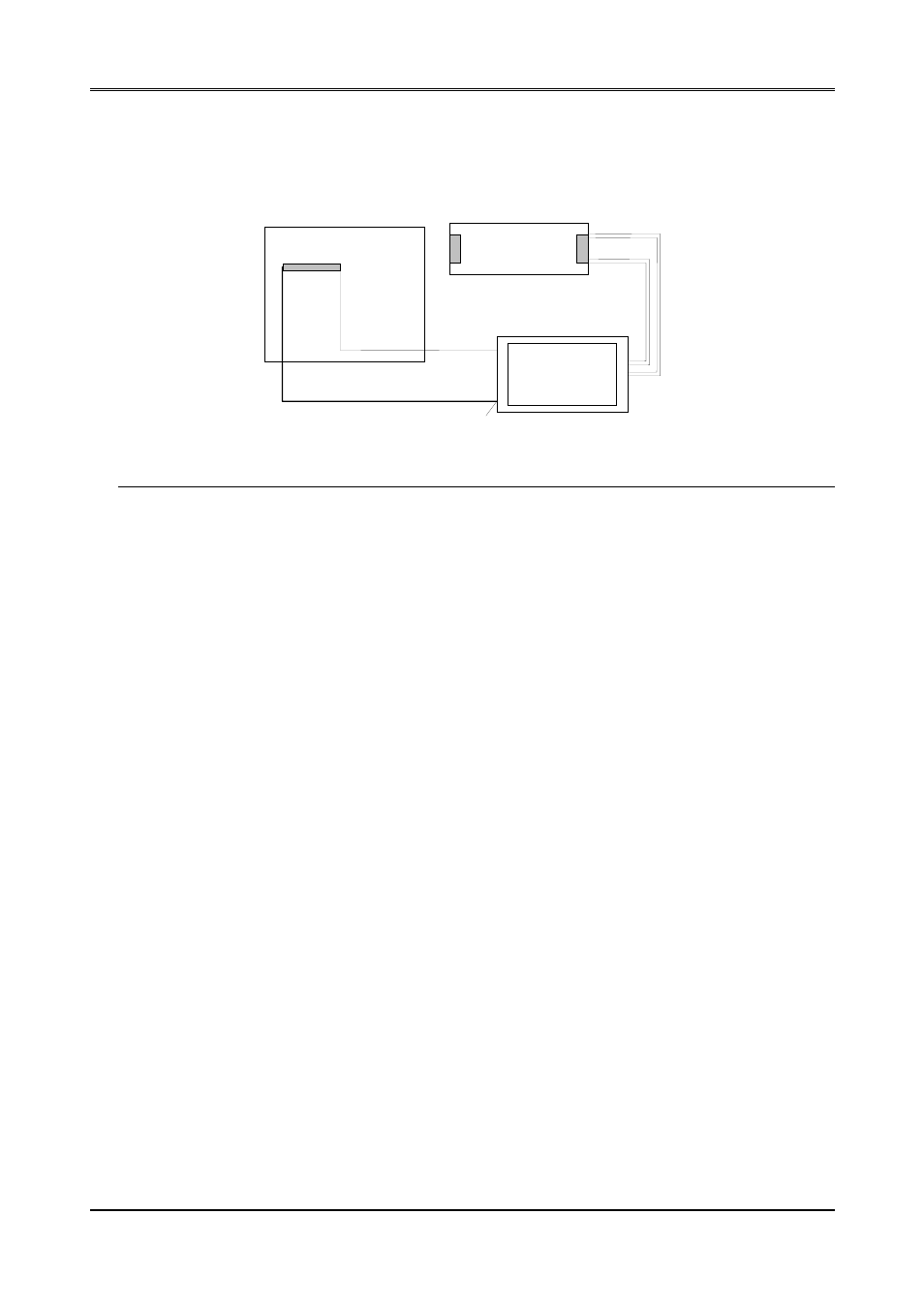

Figure 4-2 LCD Panel Cable Installation Diagram
NOTE: Be careful with the pin orientation when installing the connectors and the cables. A wrong connection can
easily destroy your LCD panel. The pin 1 of the cable connectors is indicated with a sticker and the pin1 of
the ribbon cable is usually with different color.
