220010439-G
10

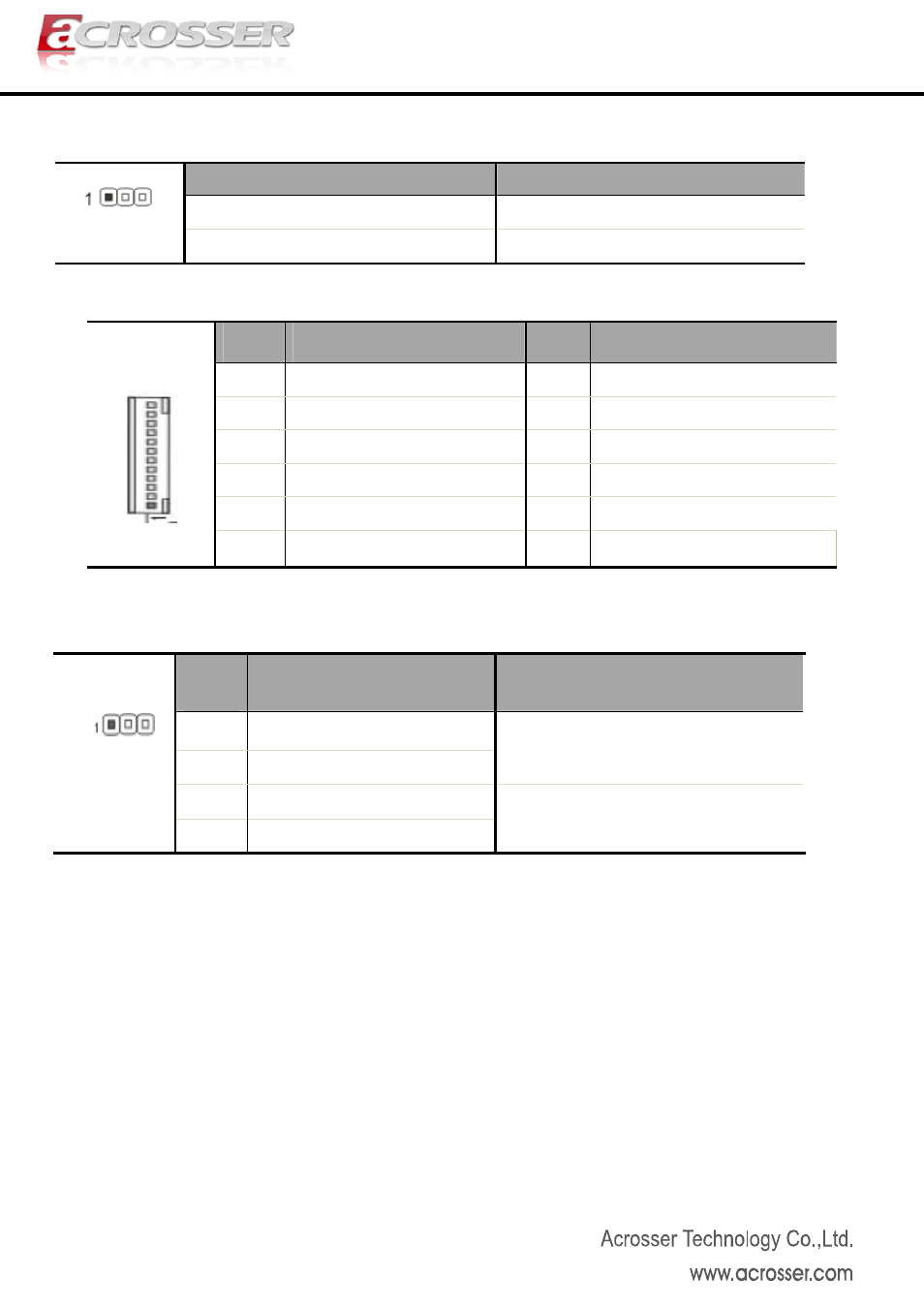

[27] SATA2 DOM Power Supply Selection Header (3*1 Pin 2.00mm)
Settings Function
1-2 Pin 7 Output：+5V
J1
2-3 Pin 7 Output：GND （Default）
[28] VGA Header（12*1 Pin 2.00 mm）(Reserve for Test)
Pin Definition Pin Definition
1 CRT_ON 2 VSYNC
3 HSYNC 4 GND
5 RED 6 GND
7 GREEN 8 GND
9 BLUE 10 GND
J_VGA1
11 DDCDAT 12 DDCCLK
Note. It can not use USB Hub with power adaptor that connects to USB port.
[29] Mini PCIe USB Signal Control Header（3*1 Pin 2.54 mm）
Heade
r
Settings Definition
J13 1-2
J14 1-2
USB signal supported (Default)
J13 2-3
J13、J14
J14 2-3
N/A
