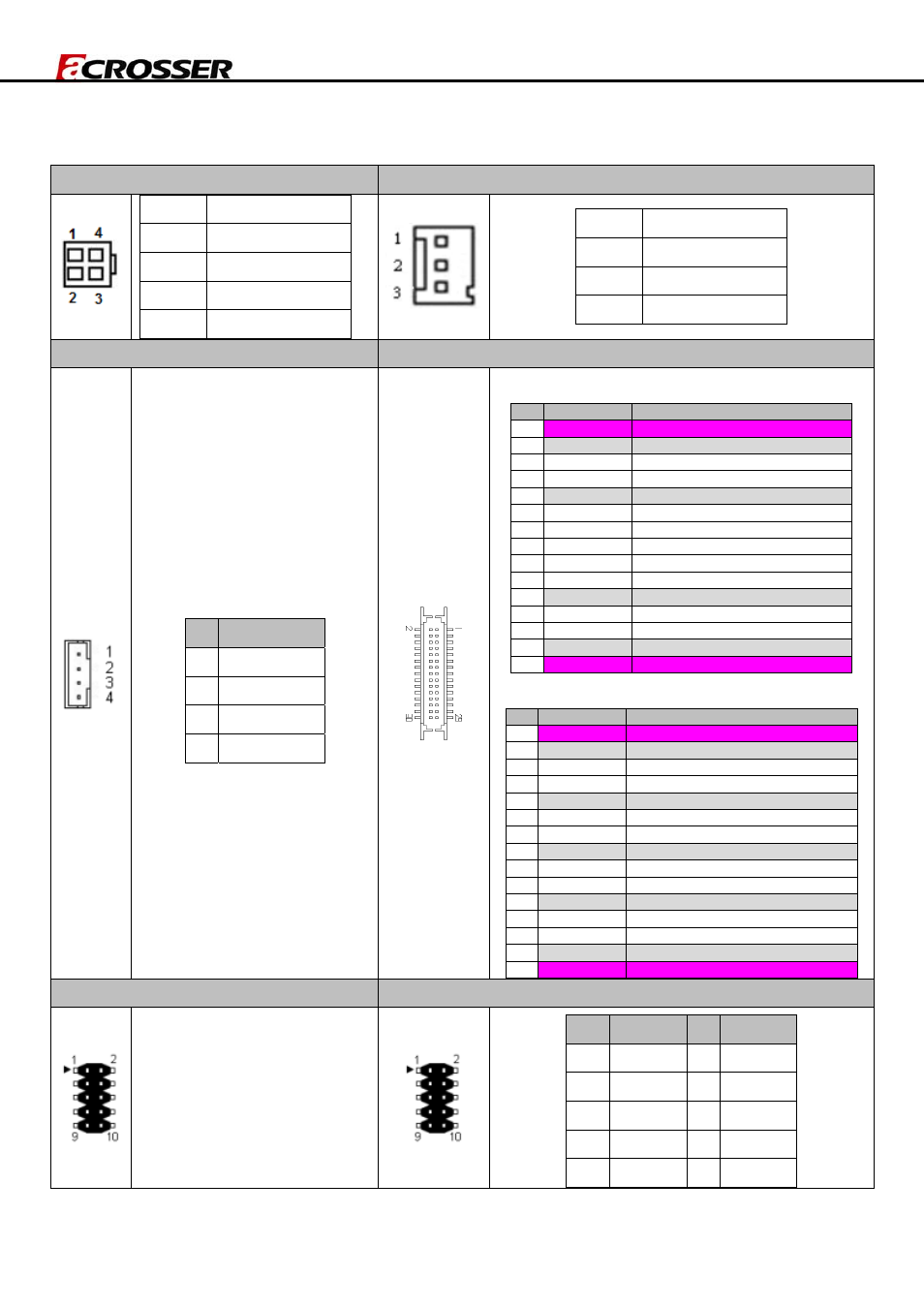

2.1 Connectors and Jumper Settings
1. ATX12V1 2.SYSFAN1
Pin SIGNAL
1 GND
2 GND
3 +12V
4 +12V
Pin SIGNAL
1 GND
2 +12V
3 NC
3. SATA_PWR1 4. LVDS1
SATA Device Power Connector
PIN SIGNAL
1 +12V
2 GND
3 VCC3
4 VCC5
30 pin DF13 connector
PIN Symbol Description
1 VLED VLED Power
3 Vss Ground
5 VLED_EN LED Enable
7 VPWM_EN System PWM
9 Vss Ground
11 RxIn3+ LVDS receiver signal channel 3
13 RxIn3- LVDS receiver signal channel 3
15 NC No Connected (Reserve)
17 NC No Connected (Reserve)
19 NC No Connected (Reserve)
21 Vss Ground
23 SMB_DATA SMB DATA
25 SMB_CLK SMB CLK
27 Vss Ground
29 VDD Power
PIN Symbol Description
2 VLED VLED Power
4 Vss Ground
6 CKIN+ LVDS receiver signal Clock
8 CKIN- LVDS receiver signal Clock
10 Vss Ground
12 RxIn2+ LVDS receiver signal channel 2
14 RxIn2- LVDS receiver signal channel 2
16 Vss Ground
18 RxIn1+ LVDS receiver signal channel 1
20 RxIn1- LVDS receiver signal channel 1
22 Vss Ground
24 RxIn0+ LVDS receiver signal channel 0
26 RxIn0- LVDS receiver signal channel 0
28 Vss Ground
30 VDD Power
5. SPI1 ( For BIOS FW Update ) 6. FP_USB1 Connector
Used for BIOS Firmware Update
Tools.
PIN SIGNAL PIN SIGNAL
1 +5V 2 +5V
3 Data3- 4 Data4-
5 Data3+ 6 Data4+
7 GDN 8 GDN
9 GDN 10 GDN
