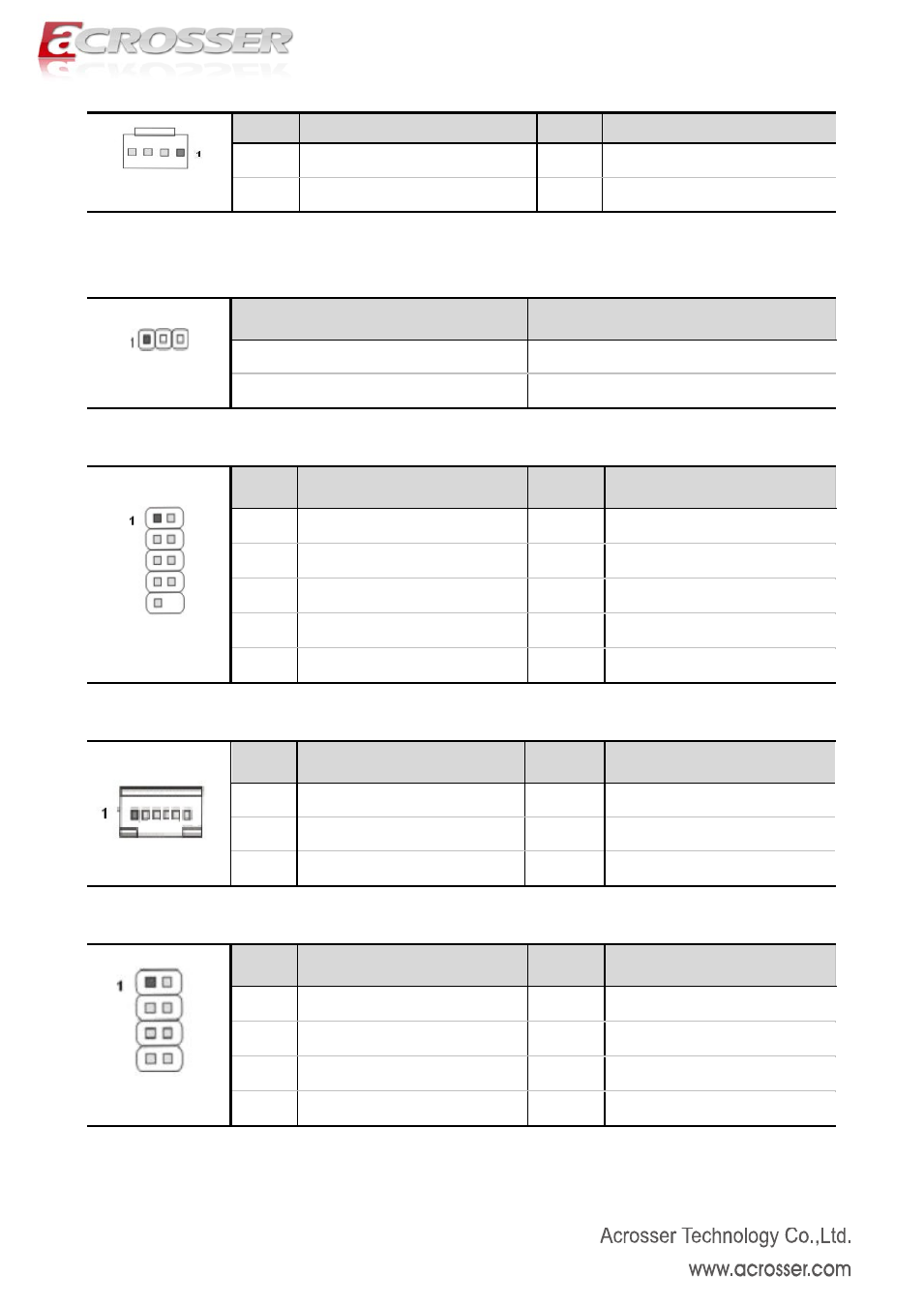

[1] Power Input Header（4*1 Pin 2.54mm）
ATX1
Pin
Definition
Pin
Definition
1
+12V IN
2
+12V IN
3
GND
4
GND
* Please use the DC Power Cable in accessory to avoid the System damage.
[2] CMOS Control Jumper (3*1 Pin 2.54mm)
JCMOS1
Setting
Function
1-2
Normal (Default)
2-3
Clear CMOS
[3] Front Panel Header（5*2 Pin 2.54mm）
F_PANEL1
Pin
Definition
Pin
Definition
1
HD LED+
2
Power LED+
3
HD LED-
4
Power LED-
5
GND
6
PW+
7
RESET
8
PW-
9
N/C
[4] KBMS Header (6*1 Pin 2.0mm)
J_KBMS1
Pin
Definition
Pin
Definition
1
KB_CK1
2
KB_DT1
3
MS_CK1
4
GND
5
+5V
6
MS_DT1
[5] F_AUDIO Header（4*2 Pin 2.54mm）
J_AUDIO1
Pin
Definition
Pin
Definition
1
OUT_R
2
MIC_R
3
GND
4
GND
5
GND
6
GND
7
OUT_L
8
MIC_L
