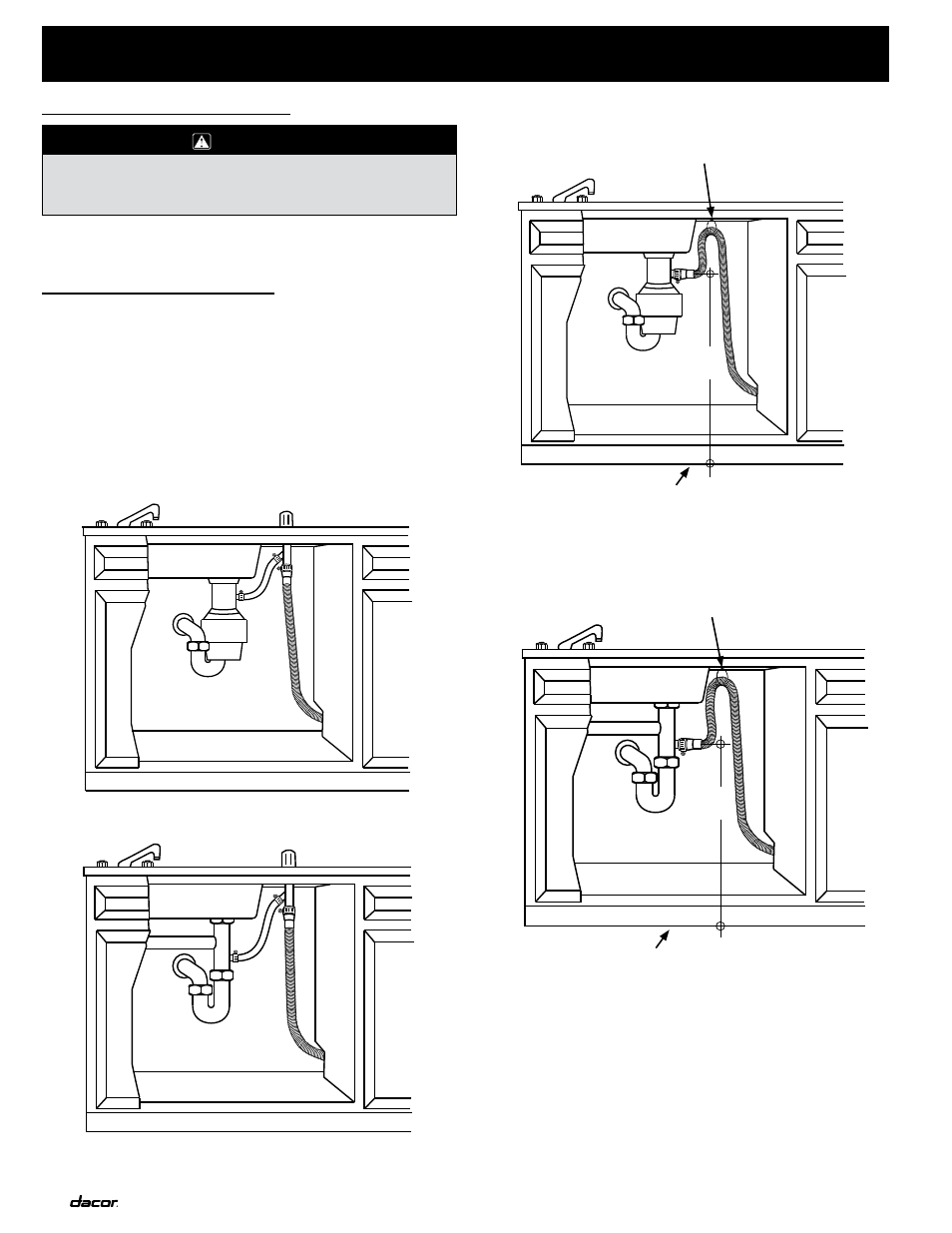

Installation Instructions
20"
Min.
Create loop and fasten to under
side of cabinet
Floor
DISPOSAL INSTALLATION WITHOUT AIR GAP
20"
Min.
Create loop and fasten to under
side of cabinet
Floor
WASTE TEE INSTALLATION WITHOUT AIR GAP
Water Line Connection
WARNING
Any solder connections must be made before the
dishwasher water line is connected. Do not solder
within six inches of the inlet valve.
•
Connect the hot water line from the dishwasher to the hot
water supply valve.
Drain Line Installation
Connect the flexible drain line to the air gap (see
below) or connect it directly to the waste tee or disposal
(see the following page).
For installations without an air gap, put a loop in the
drain line as shown on the following page.
Tighten the holding clamp. For installations with an
air gap check to make sure the drain line from the air
gap to the disposal/drain trap is complete and that the
clamps are tight.
1.
2.
3.
INSTALLATION WITH AIR GAP AND DISPOSAL
INSTALLATION WITH AIR GAP AND WASTE TEE
