Panel controls – Hyundai H-CMD4011 User Manual
Page 9
9

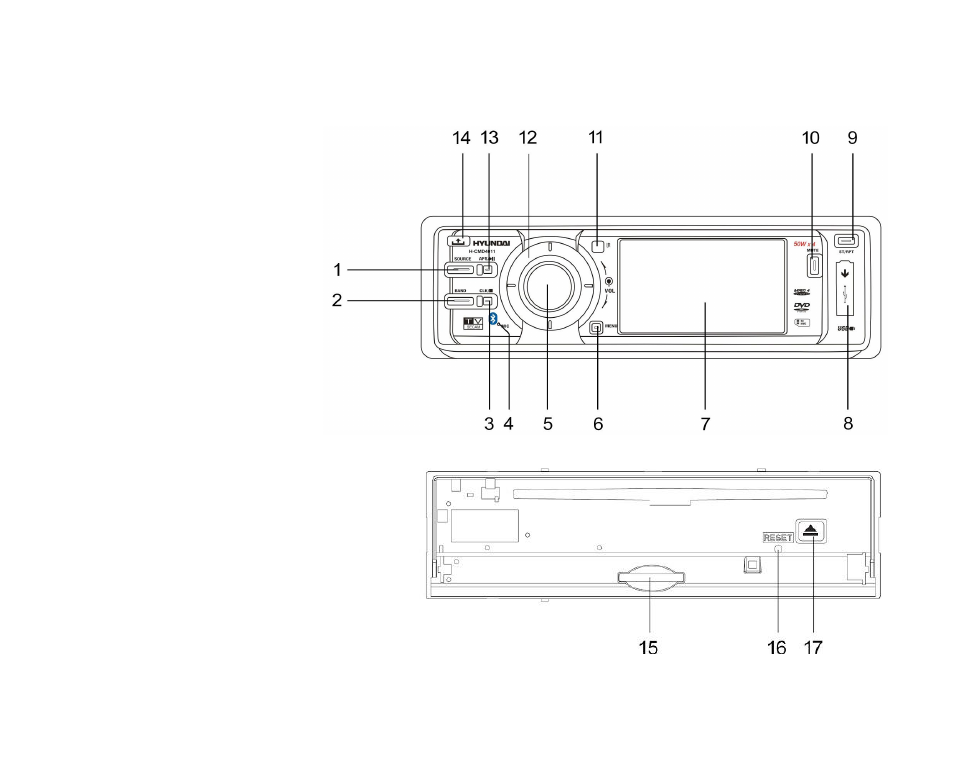

Panel controls
Front panel
1. SOURCE button
2. BAND button
3. CLK/STOP button
4. Microphone
5. VOL/ENTER knob
6. MENU button
7. Display
8. USB jack
9. ST/RPT button
10. MUTE button
11. IR sensor
12. Cursor buttons
13. APS/PLAY/PAUSE button
14. OPEN button
Inner panel
15. SD-slot
16. RESET button
17. EJECT button
The front panel of this unit can be detached to
show the inner panel with disk slot. Press
OPEN button to open the inner panel. To
unload the disk press EJECT button
To set the unit to the initial settings press RESET button.
