10

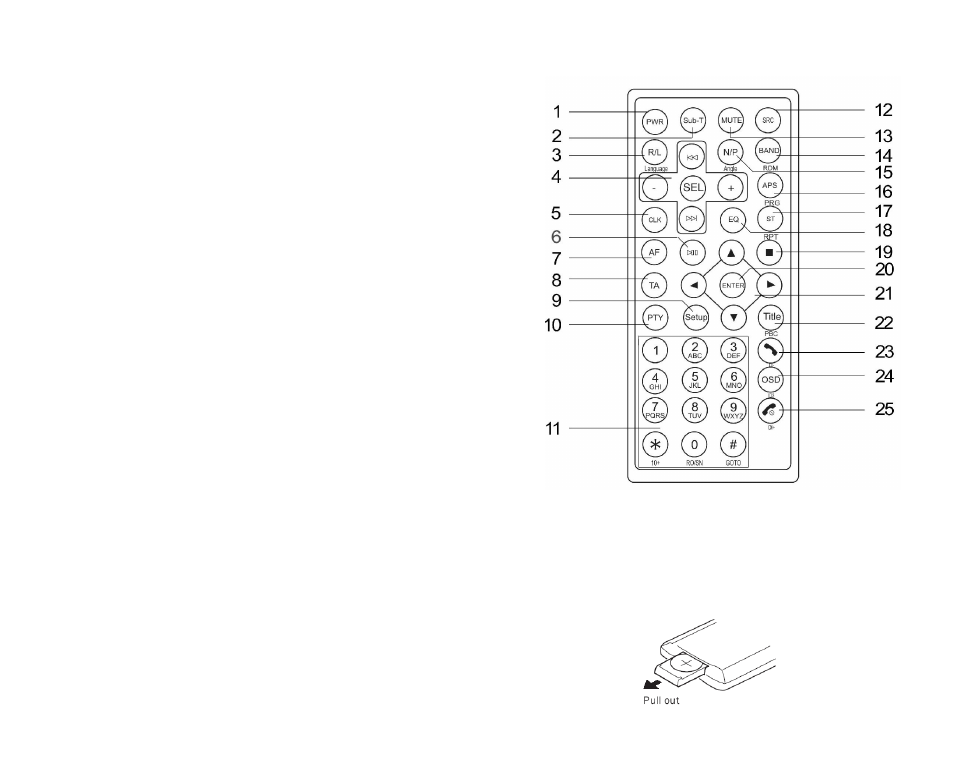

Remote control
1. PWR
button
2. SUB-T button
3. R/L/LANGUAGE button
4. VOL-/VOL+/PREV/NEXT/SEL buttons
5. CLK button
6. PLAY/PAUSE button
7. AF button (option)
8. TA button (option)
9. SETUP
button
10. PTY button (option)
11. Number buttons, GOTO button
12. SRC button
13. MUTE button
14. BAND/RDM button
15. N/P/ANGLE button
16. APS/PRG button
17. ST/RPT button
18. EQ button
19. STOP button
20. ENTER button
21. RIGHT/LEFT/UP/DOWN cursor buttons/ENTER button
22. TITLE/PBC button
23. ANSWER/DI- button (option)
24. OSD/ID3 button
25. HANG UP/DI+ button (option)
Loading and replacing the battery
Use one lithium battery (CR2025).
Insert the battery with + and – poles aligned properly.
