6

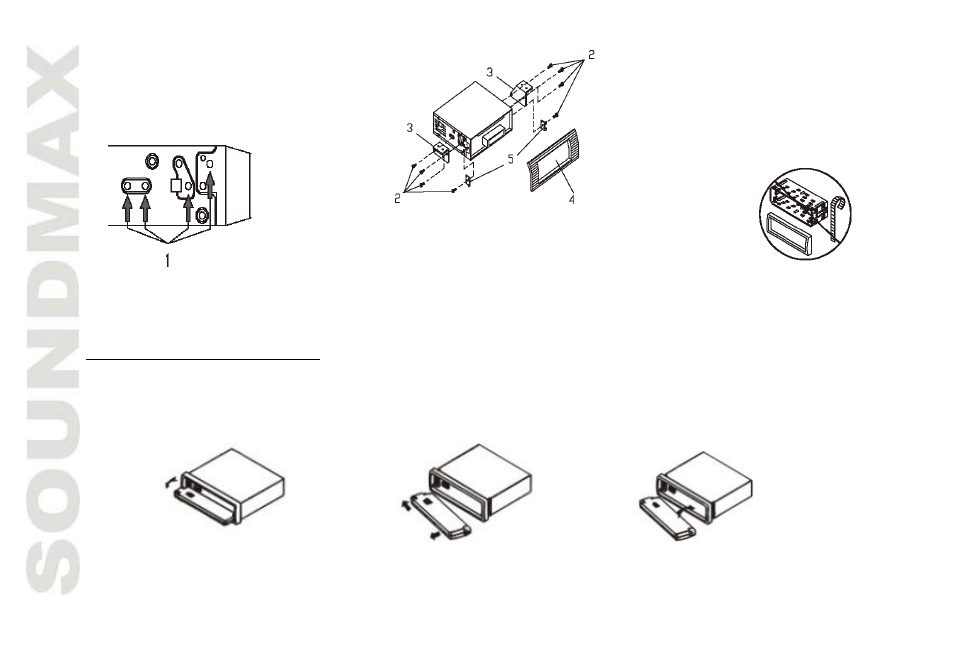

Pic. 1
2. Screw
3. Factory radio mounting bracket.
4. Dashboard or Console
5. Hook (Remove this parts)
Note: The mounting box, outer trim ring, and the Half-sleeve are not used for this method of
installation.
Detachable control panel
Detaching the control panel
1.
Press the OPEN button on the front panel. The panel will go down (pic. 1).
2.
Push the panel to the left and then pull it towards you (pic. 2).
Pic. 2 Pic. 3
