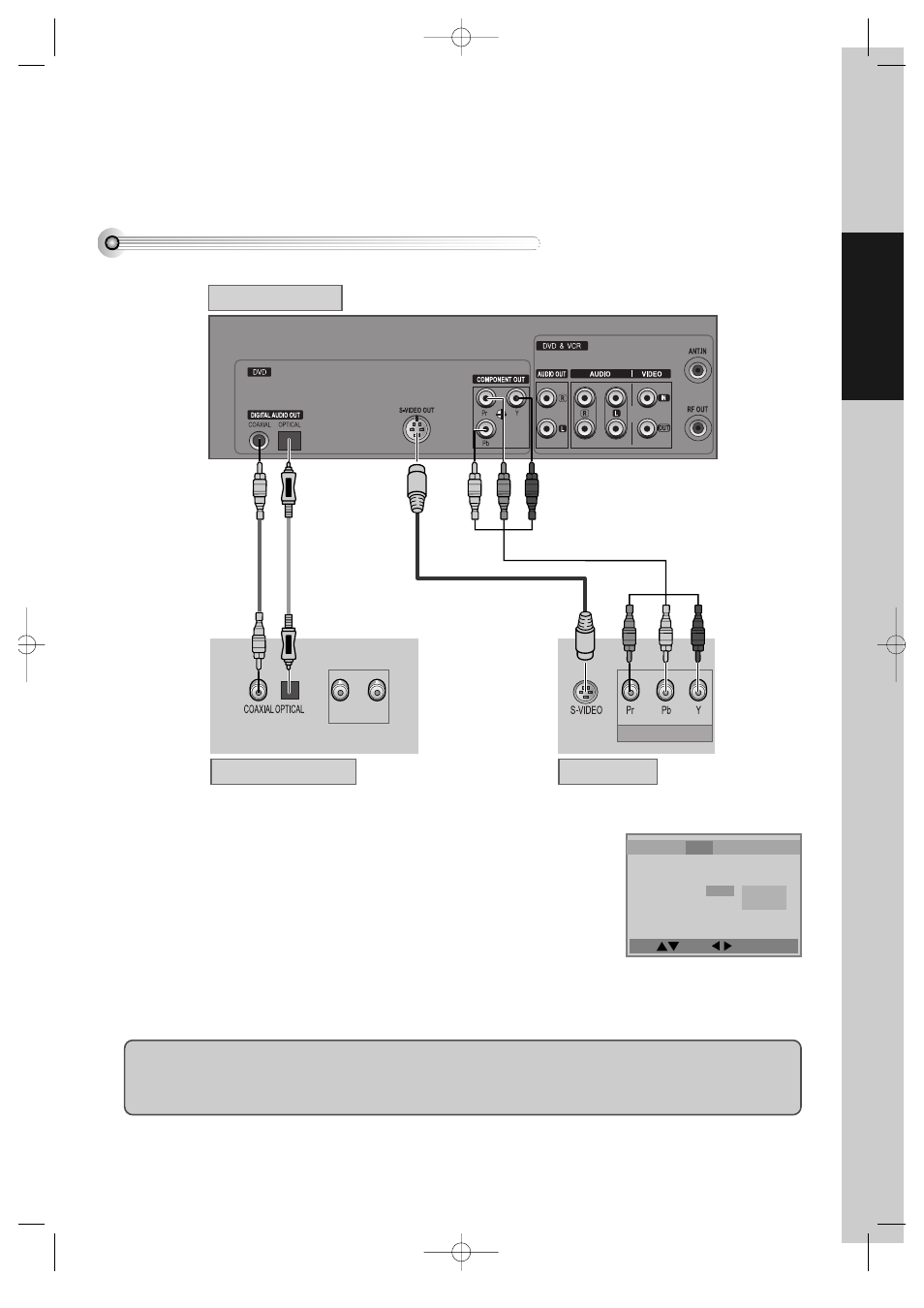

Connecting TV with S-Video/Component Jack, Amp with Digital Audio Out Jack
How to Connect
(L) AUDIO IN (R)
REAR PANEL OF DVD-VIDEO
AMPLIFIER OF DOLBY DIGITAL REAR PANEL OF TV
COMPONENT IN
CONNECTING CABLE
(NOT SUPPORTED)
¡
Select either S-VIDEO IN or COMPONENT IN to connect to TV. You should
select “Video Out” type in DVD SET(see 62P) in advance.
™
Select either COAXIAL or OPTICAL to connect to amp of Dolby Digital.
** If you want to know about “Dolby Digital”, please refer to [About DVD] in
68p.
£
If screen is broken in connecting COMPONENT OUT to Pr, Pb, Y of TV
COMPONENT IN jack , connect to Cr, Cb, Y.
■ Use in S-VIDEO or COMPONENT In jack attached in TV or amp supporting Dolby Digital.
Language Video Audio Others
TV Aspect 4:3 PS
TV Type NTSC
Video Out S-Video
Brightness Normal
Sharpness Normal
Component
S-Video
