Connecting with Cable Box

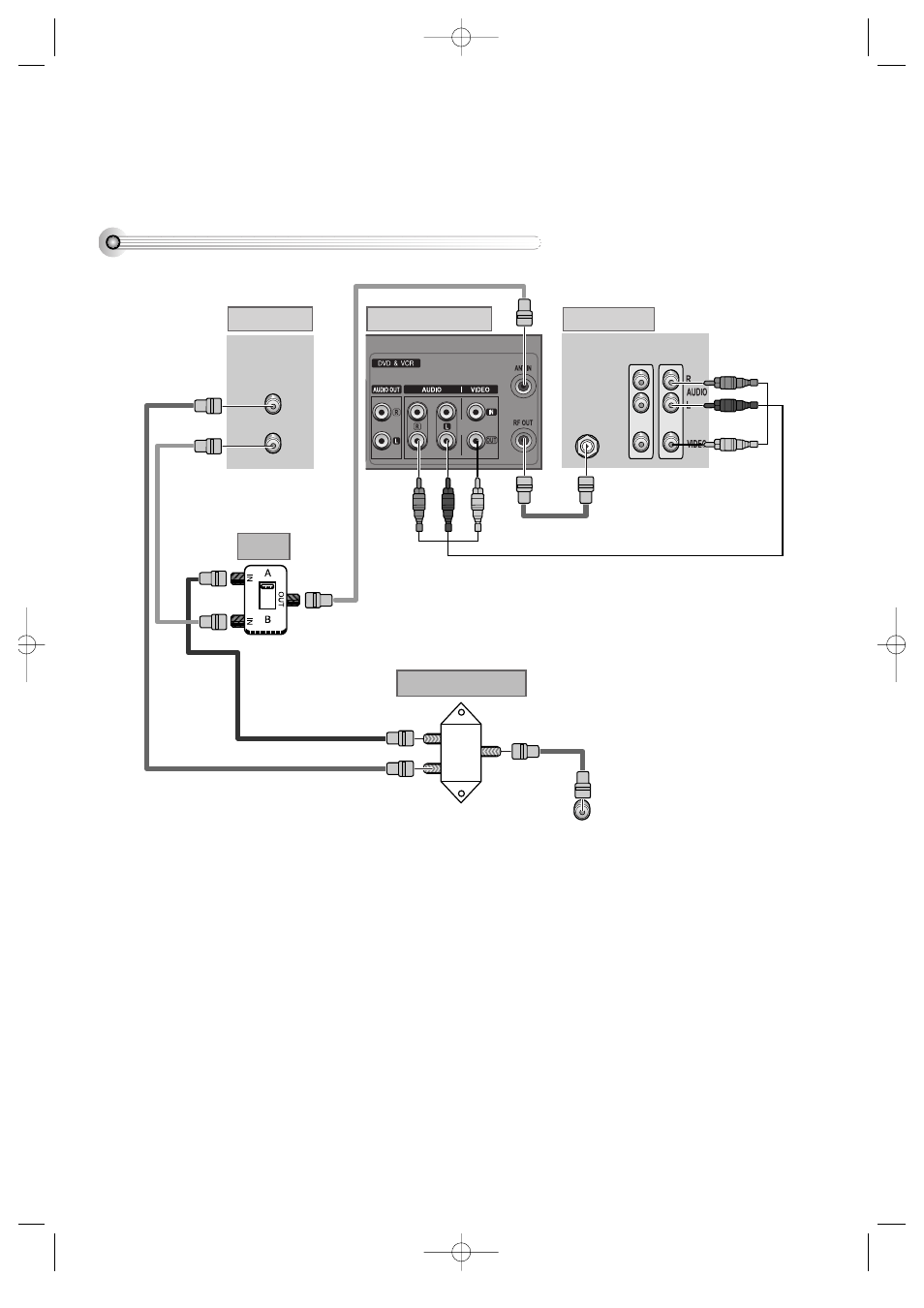

How to connect
INPUT 1
IN
OUT ANT IN
INPUT 2
REAR PANEL OF DVD-VIDEO
CABLE ANTENNA
CONVERTER BOX REAR PANEL OF TV
SPLITTER (NOT SUPPORTED)
A/B Switch
RF CABLE
RF CABLE
RF CABLE
RF CABLE
OUT
OUT
IN
AUDIO/VIDEO CABLE
If your cable system only requires you to use a converter box for some channels
(i.e., pay-TV channels), follow these steps: Find the primary incoming RF cable. Plug this cable into a splitter
(available at your local electronics store.) Connect one RF cable between one OUT terminal on the splitter and the
IN terminal on the converter box.
Connect another RF cable between the other OUT terminal on the splitter and the A-IN terminal on an A/B switch
(available at your local electronics store.) Connect a third RF cable between the OUT terminal on the converter box
and the B-IN terminal on the A/B switch.
Connect a RF cable between the OUT terminal on the A/B switch and the ANT. IN on your DVD-VIDEO.
When the A/B switch is in the B position, use the converter box to change channels ; when the A/B switch is in the A
position, use the DVD-VIDEO to change channels.
■ You should install a distributor additionally.
