DCS CMOTTK30 - Manual

MODEL CMOTTK30 CONVECTION MICROWAVE TRIM KIT
INSTALLATION INSTRUCTIONS

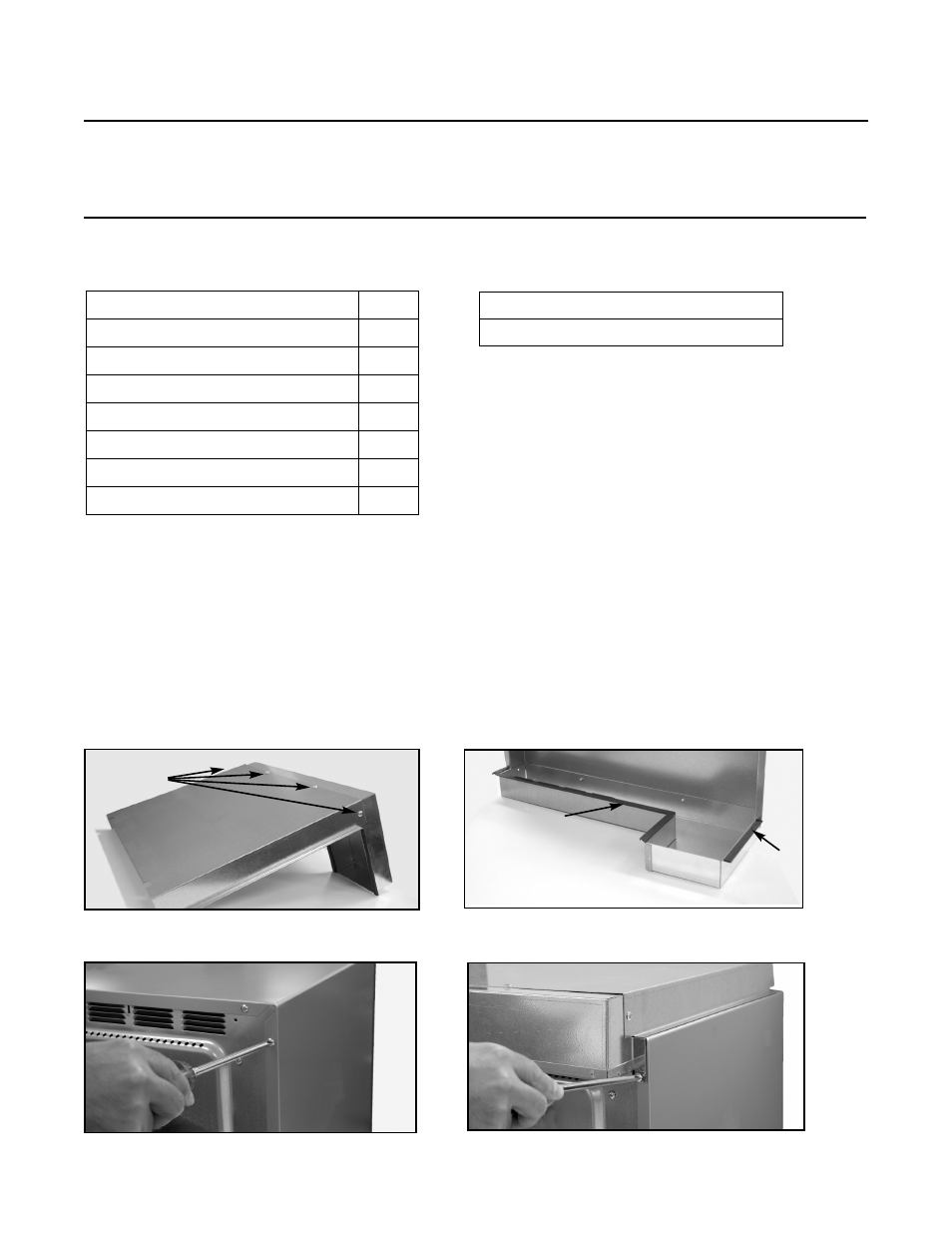

Before installing trim kit, install the convection duct as follows:
1. Insert the rear section of the duct into the forward section of the duct and install 4 screws supplied
(Fig. 01).
2. Install foam tape on 2 flanges of the rear section of the duct (Fig. 02).
3. Remove and retain the 2 top screws, left and right, located at the rear vertical edges of the Microwave
(Fig. 03).
4. Place the duct on top of the Microwave and reinsert the 2 screws removed in Step 3 (Fig. 04).
Before you begin, read these instructions completely and carefully.
Getting Started
■ Remove packaging
Contents Tools Required
Part Description Qty
Trim Assembly 1
Base 1
Rear Duct 1
Forward Duct 1
Foam Tape 2 ft
Mounting Bracket (L/R) 2
Sheet Metal Screws 14
1/8” Drill
#2 Phillip Screwdriver
Fig. 01 Fig. 02
Fig. 03 Fig. 04
4 Screws
Foam Tape
Foam
Tape
