DSC FM-3000 - Manual (Page 2)

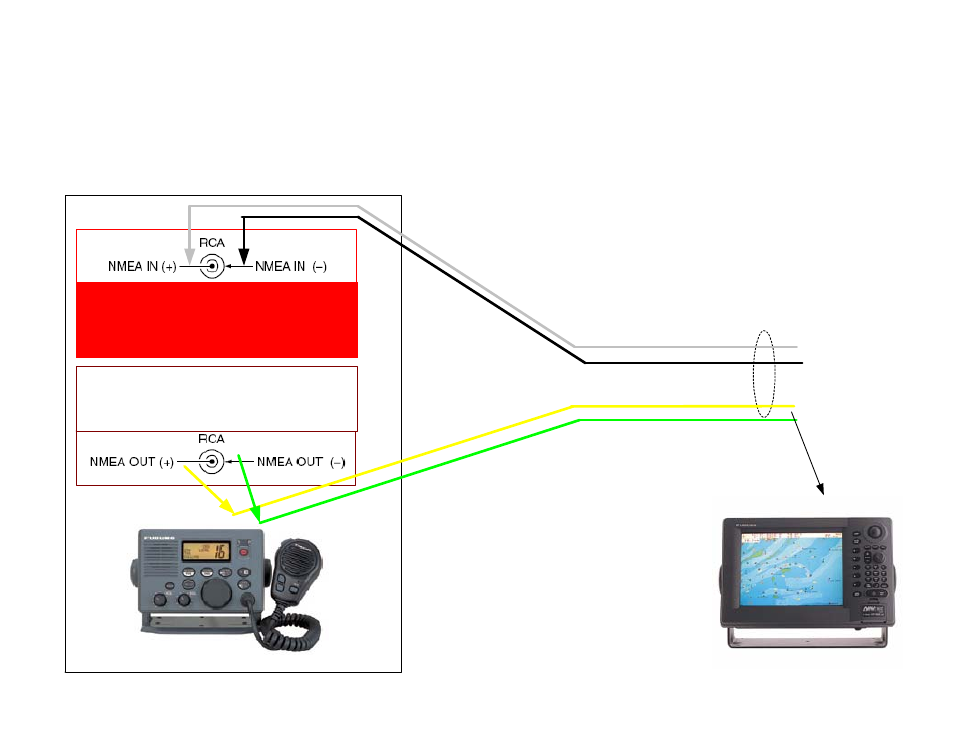

Connection Diagram, 10.4" VX2
WHT
GREEN
YELLOW
BLACK
RED NMEA In RCA Jack - White wire from Plotter
to Center Conductor (+) and Black wire from
plotter to Outer (-)
000-117-603 Cable to
NMEA Port 2
White NMEA OUT RCA Jack - Yello w wire from
Plotter to Center Conductor (+) and Green wire
from plotter to outer (-)
Use Optional 000-117-603 Cable to connect the VX2 to
the RCA type connectors on the back of the F M-3000.
Set the VX2's NMEA port to output RMC and GGA.
