KOSHIN SEH-50X User Manual
Seh-50xp
Attention! The text in this document has been recognized automatically. To view the original document, you can use the "Original mode".
SEH-50XP

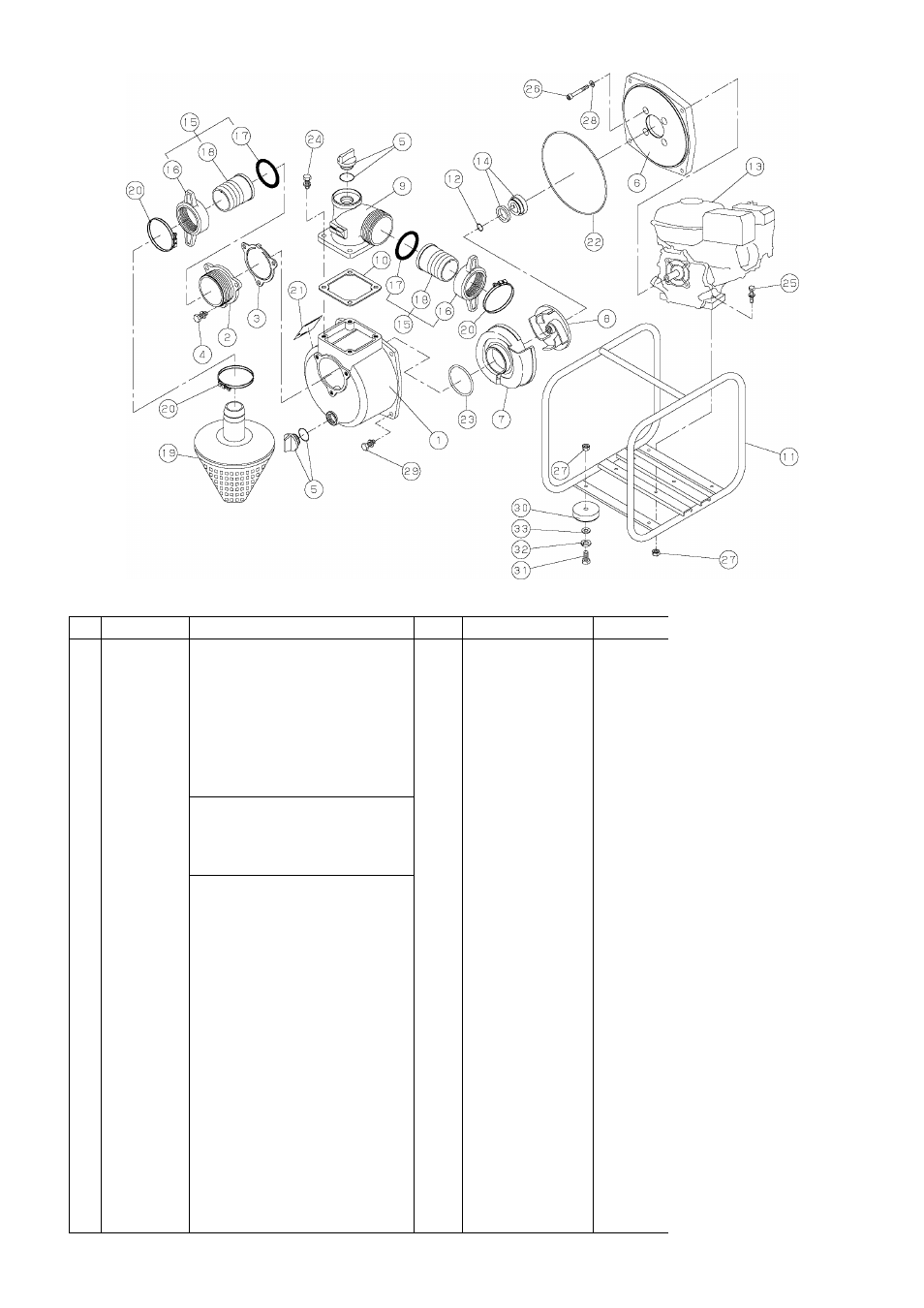

DWG No.011938214 MODEL:SEH-50XP FORM:SEH-50X-BAG-3
№
PARTS CODE
PARTS NAME
QTY
MATERIAL
SIZE
1
012019501
PUMP CASING
1
ADC
2
011266203
SUCTION FLANGE
1
ADC
3
011266501
CHECK VALVE
1
NBR
4
743119045
HEXAGON BOLT
3
SWRM
M8X20
5
011807802
20A PLUG SET
2
6
011402701
FLANGE BRACKET
1
ADC
7
011464001
VOLUTE CASING
1
FC
8
011512501
IMPELLER
1
FC
9
011055605
DELIVERY FLANGE
1
ADC
10
011054102
DELIVERY FLANGE PACKING
1
CR
11
011722201
BASE SET
1
12
011046601
IMPELLER ADJUSTING WASHER
3
BSP
13
012054801
ENGINE
1
14
011409001
MECHANICAL SEAL
1
EH790-020
15
011702603
COUPLING SET
2
ABS
16
011339002
COUPLING
2
ABS
17
011339101
COUPLING PACKING
2
NBR
18
011035605
HOSE NIPPLE
2
ABS
19
011815901
STRAINER SET
1
PP
20
940019060
HOSE BAND
3
* 60
21
011345705
NAME PLATE
1
22
011501401
O-RING
1
NBR
1517-42.5
23
011279201
O-RING
1
NBR
P54
24
743119047
HEXAGON BOLT
4
SWRM
M8X25
25
743119051
HEXAGON BOLT
4
SWRM
M8X35
26
734532076
HEXAGON SOCKET BOLT
4
SCM
M8X60
27
827419008
HEXAGON NUT
8
SWRM
M8
28
854255008
SEAL WASHER
4
* 8
29
743119046
HEXAGON BOLT
4
SWRM
M8X22
30
011051502
50L CUSHION RUBBER
4
F-23
REMARKS
♦ Bare engine can not be supplied
