2

3

Getting Started

Welcome to the DKEC system designed

specifically for the kitchen. With the DKEC,

you can watch television, browse the Internet,

play DVDs or CDs, check your Email, and

monitor other areas of your home, all from the

convenience of your kitchen.

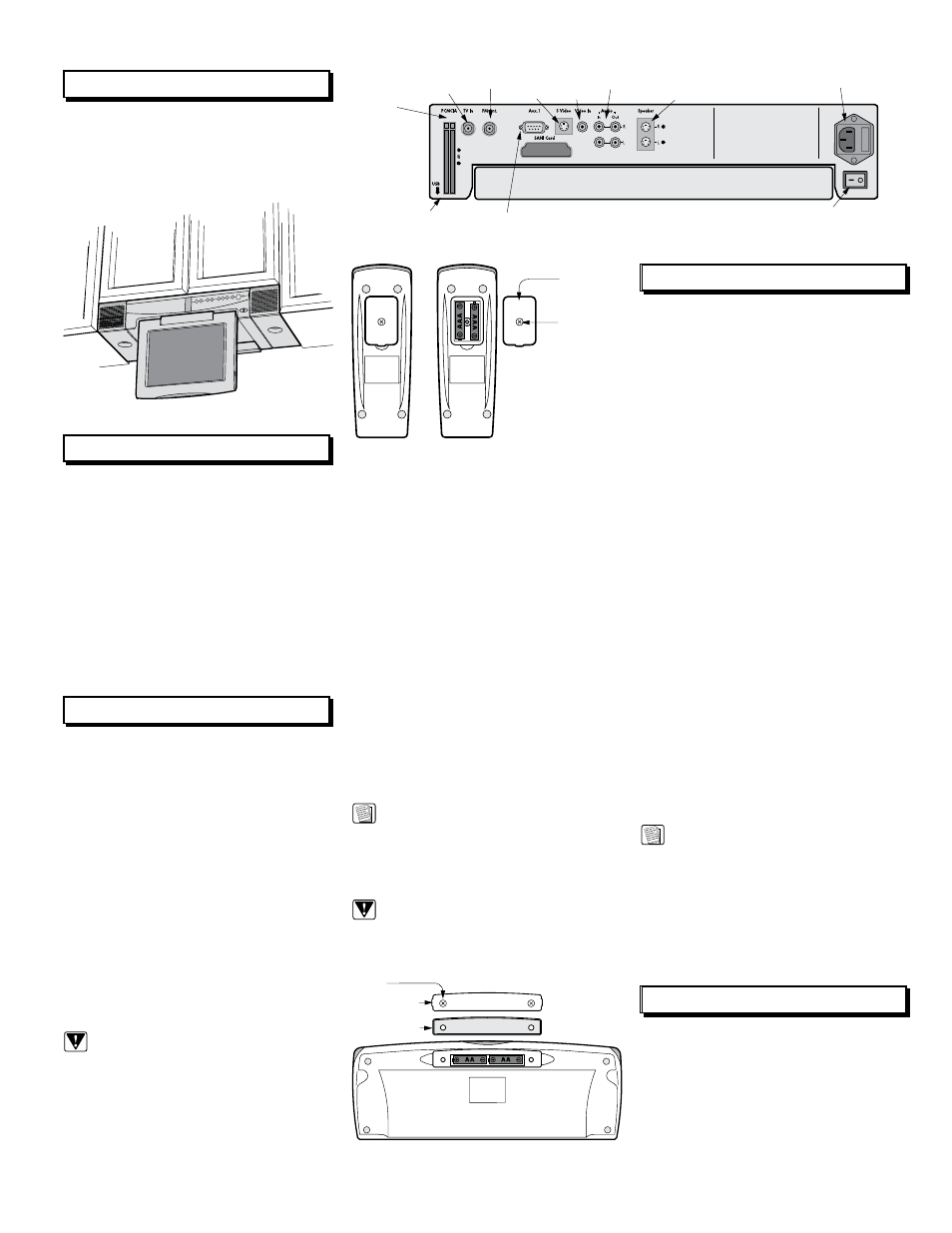

Installed Under Kitchen Cabinets

Setting Up Your DKEC

Before you turn on your DKEC, you will need to

install the batteries in the remote and keyboard

and set up the connections to support the many

features of the DKEC. These connections may

include:

Your television cable or antenna

Any additional video sources (such as a

camera and/or satellite cable)

The included FM Radio antenna

A PCMCIA Network card and an Ethernet

cable or phone line.

The final thing you should do is plug in the

power cord before turning on the device.

Installing the Batteries

The remote requires two AAA batteries

(supplied), and the keyboard requires two

AA batteries (supplied). Alkaline batteries are

recommended.

To install the batteries for your remote:

1. On the back of the remote, remove the

battery cover by loosening the small

screw in the center of the panel Keep the

attached washer with the screw.

2. Install two AAA batteries, ensuring that the

polarity (+ and –) on the batteries matches

the + and – markings in the battery

compartment.

3. Reattach the battery cover, making sure

that the cover is seated.

4. Insert the screw, with the washer still

attached, and tighten the screw until it is

snug.

CAUTION:

Do not overtighten the screw. You may

damage the washer and the remote will no

longer be washable.

Battery Cover

Secured Screw

Remote Battery Installation

To install the batteries for your keyboard:

1. On the back of the keyboard, remove

the battery cover by loosening both large

screws on either end of the battery panel.

Keep the attached washers with each

screw.

2. Remove the rubber gasket.

3. Install two AA batteries, ensuring that the

polarity (+ and –) on the batteries matches

the + and – markings in the battery

compartment.

4. Reattach the rubber gasket, ensuring

that the four nubs on the underside of the

gasket are pressed firmly into the holes in

the battery compartment. This is important

to keep the keyboard washable.

5. Reattach the battery cover, ensuring that it

is seated properly.

6. Insert the screws, with the washers still

attached, and tighten the screws until they

are snug.

NOTE:

If the screws won’t tighten all the way, or the

battery cover isn’t flush with the keyboard

bottom, make sure the rubber gasket is

firmly inserted into the battery compartment.

CAUTION:

Do not overtighten the screws. You may

damage the washers and the keyboard will

no longer be washable.

Screw
Battery Cover

Rubber Gasket

Keyboard Battery Installation

Connecting a TV Cable/Antenna

USB Connections

(Order Unit)

Auxiliary 1

(RS232 Connection)

Power Switch

(On “I”)(Off “O”)

Dual

PCMCIA

TV In

FM Antenna

S-Video Video In

Audio In/Out

Internal Speakers

110VAC Power Connector

Rear Panel of the DKEC

The DKEC is a 125-channel, cable-ready, stereo

television. To use your DKEC as a television,

you must first connect it to a TV signal source.

To connect the TV cable:

Screw the existing television cable into the

TV In connection on the back of the DKEC.

If space is limited, use the supplied right

angle F-connector.

To connect a TV antenna:

Use an antenna with a connector designed

to fit on to a coaxial cable connection like

the one for the

TV In connection at the

back of the DKEC.

Satellite or Digital Cable Television Service

The DKEC supports satellite and digital cable

television service; however, when using satellite

service, the DKEC remote or keyboard cannot

be used to change channels. Continue to use

your existing remote control with the set-top box.

Your satellite signal may come in through

the standard TV-In coxial connection. See To

connect the TV cable in the previous section.

Alternately, you may wish to take advantage of

the higher quality of Satellite or Digital Cable by

using the S-video connection. You can connect

digital cable or a Direct Broadcast Satellite

(DBS) system, such as DirectTV or DISH, to

your DKEC. See To connect an S-Video source

in the next section.

NOTE:

If you use an S-Video connection from your

Satellite or Digital cable, you will need to

use Video mode to watch television. See

Video mode on page 10. The DKEC remote

or keyboard cannot be used to change

channels in Video mode. Continue to use

your existing remote control with the set-top

box.

Connecting an S-Video Source

S-Video (Super-Video) divides video information

into two separate signals for a sharper, higher-

quality image. Most new video cameras,

camcorders, VCRs, and game machines include

an S-Video jack.

The DKEC can support one S-Video signal that

can be viewed in Video Mode. Press the Video

mode button repeatedly to toggle between the

S-Video signal and a composite signal.
